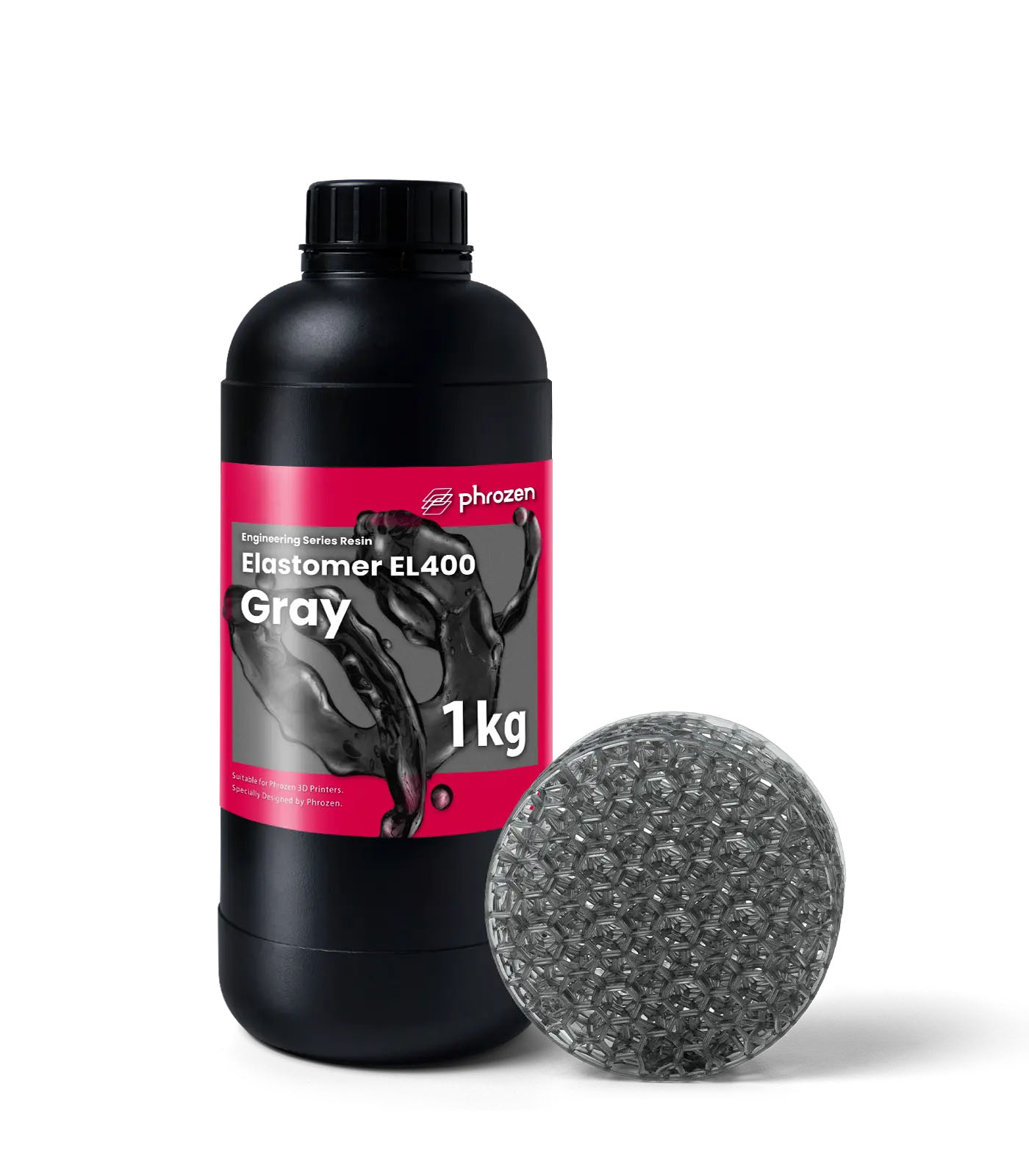

Phrozen EL400 Resin

Phrozen EL400 resin is an advanced elastomeric 3D printing material designed for LCD resin 3D printers, ideal for producing flexible, durable prototypes with high precision. It is particularly suitable for applications requiring rubber-like properties, such as soft grips, seals, and cushioning elements. With a Shore A hardness of 70-75 and impressive elongation of 391%, this resin delivers an ideal combination of flexibility and strength, making it resilient under repeated stress. Phrozen EL400 resin has outstanding tear resistance, rated to endure over 60,000 cycles in flexing tests, allowing prototypes to withstand extensive testing and real-world use.

Phrozen EL400 resin is easy to work with on compatible 3D printers, creating prints with excellent rebound resilience, meaning they return to shape effectively after deformation. Its high viscosity ensures smooth layer curing, essential for accurate and durable prints. Available in 1kg bottles, EL400 resin meets industrial needs for functional prototyping in fields like automotive, footwear, and soft robotics, replacing complex traditional methods like injection molding.

Phrozen’s EL400 elastomer resin is a reliable choice for engineers and designers seeking robust elastomeric components with rapid prototyping capabilities.

Phrozen EL400 is a high-performance elastomer resin designed to create rubber-like models that stand up to the rigors of both creative and industrial applications.

This resin is known for its exceptional elasticity, impressive tear strength, and ability to return to its original shape after deformation, making it ideal for producing prototypes and functional parts that require durability and flexibility.

Why Choose Phrozen EL400 Resin?

The EL400 is incredibly elastic and resilient.

Ultra-High Elasticity

With an astounding 391% elongation at break, Phrozen EL400 offers rubber-like flexibility combined with robust hardness, making it perfect for intricate designs and functional prototypes.

Excellent Resilience

The EL400’s 50-55% Bayshore rebound rate ensures that your printed models will bounce back to their original shape even after repeated deformation, making it ideal for long-term use and durability testing.

Superior Tear Strength

Models printed with EL400 can withstand over 60,000 cycles at 23°C, boasting a tear strength of 39.1kN/m. This makes it an excellent choice for creating products that need to endure wear and tear, such as bicycle seats and shoe cushions.

Applications of Phrozen EL400 Resin

Phrozen EL400 is versatile and robust, making it suitable for a wide range of applications:

Durable Prototypes: Perfect for creating prototypes that need to withstand repeated testing and use.

Industrial Parts : An excellent alternative to foam and TPU in industrial processes, thanks to its high tear strength and elasticity.

Consumer Goods: Ideal for products requiring high durability, such as bicycle seats, shoe cushions, and other items that must endure repeated bending and stress.

Printing with Phrozen EL400 Resin

To achieve the best results with Phrozen EL400, it’s essential to follow the recommended printing guidelines. Here’s what you need to know:

Recommended Printing Settings

• Layer Thickness: 100 µm
• Wall Thickness: ≥ 1.5 mm
• Lifting Speed: 120 – 150 mm/min
• Support Thickness: 1.0 mm or ≥ 1.2 mm

Pro Tips:

• Printing on the Build Plate: To minimize deformation, it’s recommended to print models directly on the build plate. If supports are necessary, ensure that gaps are wide enough for the resin to cure properly.
• Adjusting Speed: Reducing lifting and return speeds while increasing rest time can lead to more successful prints, especially for complex models.

Phrozen EL400 Technical Specifications:

• Density: 1.04 g/cm³
• Viscosity (at 25°C): 2300–3000 mPas
• Hardness: Shore A 70–75, suitable for durable yet flexible prints
• Tensile Strength: 6.3 MPa
• Tear Strength: 22 kN/m
• Elongation at Break: 391%, offering significant flexibility
• Ross Flexing Fatigue: Exceeds 60,000 cycles under 23°C and 60° bending, demonstrating high durability in repetitive strain
• Rebound Resilience: 40%, providing elasticity for applications that require shape retention

Key Benefits:

• High Elasticity & Toughness: With a medium hardness level, the EL400 resin produces prints that are flexible yet resistant to wear and tear, making it ideal for rubber-like parts such as grips, seals, or cushioning prototypes.
• Exceptional Durability: The resin can withstand prolonged bending and stretching cycles without losing form, supporting applications that need resilience in both prototyping and functional production settings.
• Efficient Prototyping: The flexibility and strength of EL400 facilitate rapid development of components that replicate industrial elastomers, beneficial for complex designs like midsoles or shock-absorbing elements.
