For an orthodontic practice or lab that already uses digital tools, working with IBT Resin is easy.

With an intraoral scan and digital treatment plan, an orthodontist, technician, or assistant can generate the 3D model of an IBT in just a few minutes in any of several orthodontic design software programs. This file, exported as an STL, can be imported directly into Formlabs’ easy-to-use PreForm software and prepared for printing.

3D printing a part on a Formlabs SLA printer is a hands-off process. Once the printer is configured with the resin cartridge, resin tank, and build platform, and the 3D file is uploaded to the computer via Wi-Fi, ethernet, or USB cable, the print begins with a simple push of a button, and it doesn’t need any further attention until the print is complete.

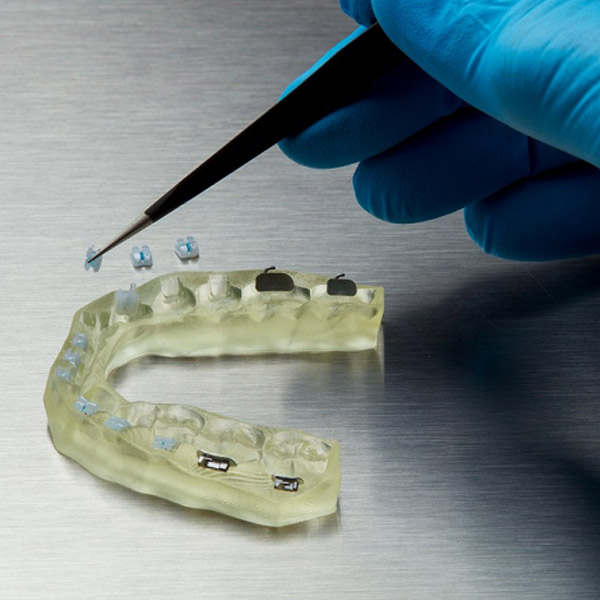

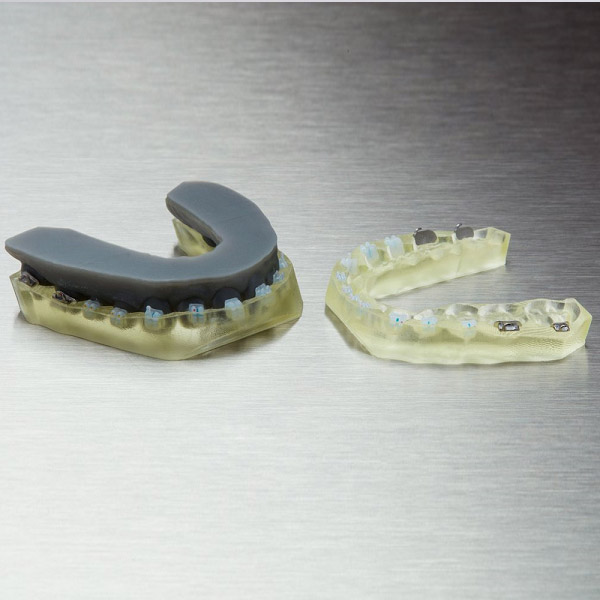

After the part is printed, it needs to be post-processed, including washing in ≥96% isopropyl alcohol and post-curing. These steps can be automated with Form Wash and Form Cure. After curing, the IBT is complete, and can be cleaned, disinfected, and cared for with tools commonly found in orthodontic offices.

To dive into the details of the workflow, download our step-by-step application guide that starts with an intraoral scan and goes through the entire process.
