eSUN ePAHTCF filament 750g

89,90 ME ΦΠΑ

Availability: In Stock
SKU: EPAHTCF



eSUN ePAHTCF filament στο 3DHUB!

Ειδικό μηχανολογικό αναλώσιμο της eSUN ePAHTCF που συνδυάζει Nylon PA6 με 20% carbon fibers. Παρέχει αντοχή, σκληρότητα και υψηλές αντοχές σε θερμοκρασίες (150+C)

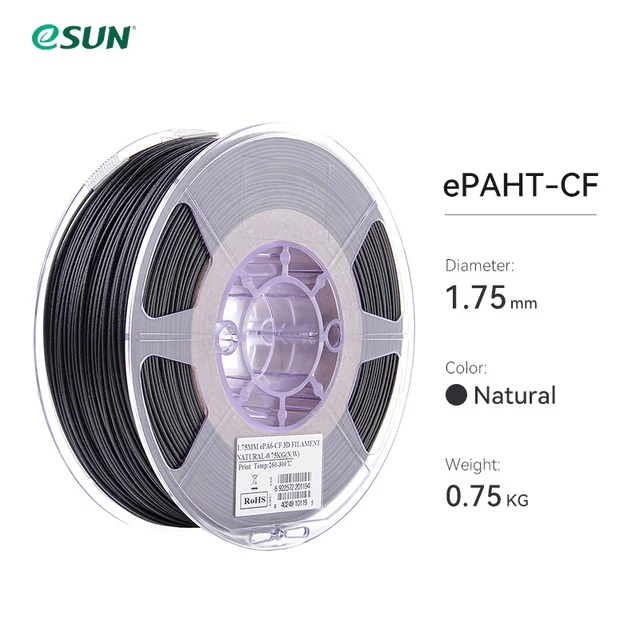

Διάμετρος: 1.75mm ± 0.05mm
Βάρος: 750g

Credit module tbi bank 1.1.1

eSUN ePAHTCF Filament στο 3DHUB!

eSUN ePACF Filament στο 3DHUB!

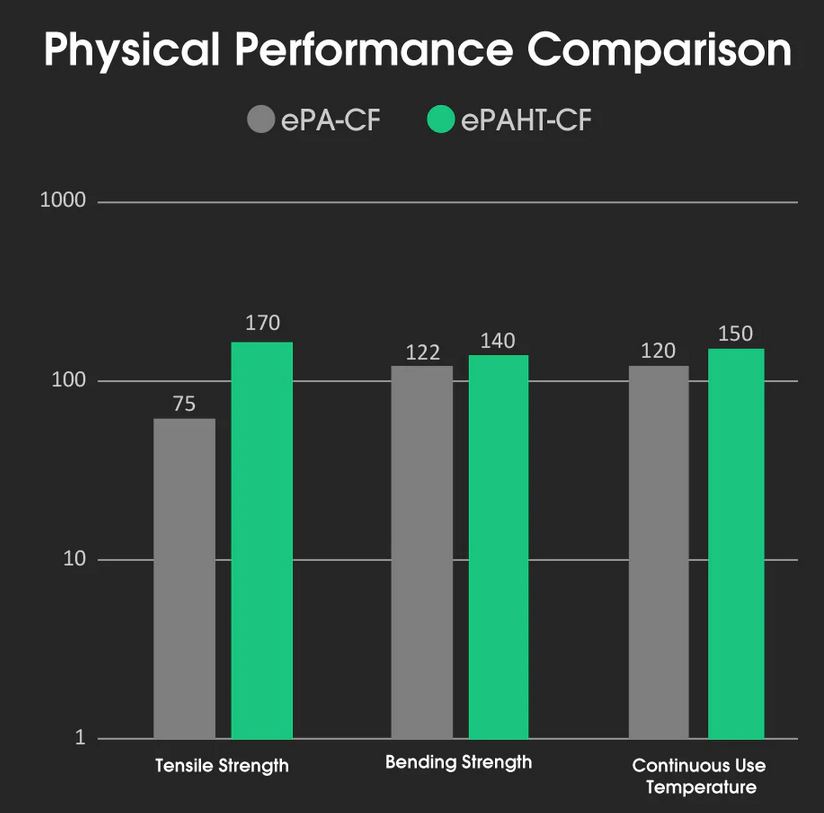

ePAHT-CF is a PA6-based material developed by eSUN and LUVOCOM, to which 15% high-rigidity carbon fibre has been added. The filament has high strength, mechanical and thermal properties higher than other nylon filaments.

esun-epaHTcf-filament-3dhubgr

The continuous use temperature of the printed parts can reach up to 150 °C, while short-term use up to 180 °C is possible.

The surface of the printed model is matt and fine.

esun-epaHTcf-filament-3dhubgr


Applications of eSUN ePAHT-CF:

  • Mechanical engineering
  • Chemical industry
  • Electrics and electronics
  • Robots & Drones
  • Automotive industry
  • Aerospace

esun-epaHTcf-filament-3dhubgr

Note: As this is an abrasive material, we recommend using a wear-resistant hardened steel nozzle or a ruby nozzle. If possible, hardened steel extruder gears should also be selected.

Due to its strong rigidity, ePAHT-CF is not easy to bend. Excessive bending of the filament should, therefore, be avoided as much as possible during feeding.

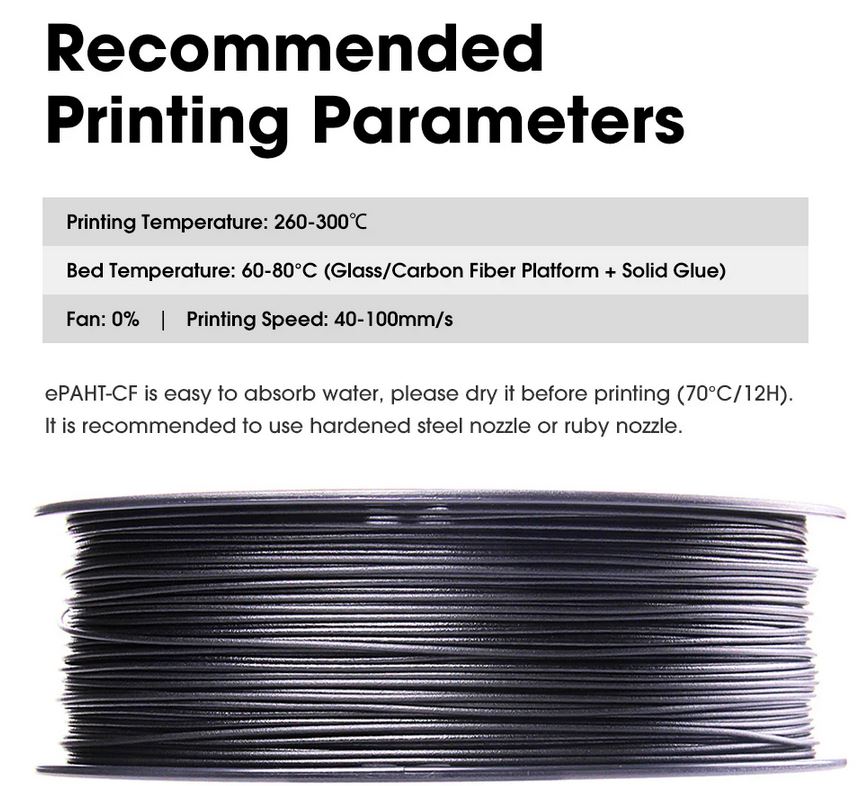

ePAHT-CF needs to be dried (70℃>12h) before printing to get the best printing effect. You can use a suitable filament drying box for this.

Filament spool dimensions
