The Dichtol line of waterproofing products from Diamant presents an advanced, ready-to-use polymer impregnation system designed for the effective and swift sealing of micropores, porosities, and hairline cracks encountered in rapid prototyping, 3D printing, and additive manufacturing. Notably, Dichtol’s exceptional capillary activity ensures that the polymer deeply penetrates the workpiece, hardening from within to seal and impregnate the surface comprehensively. This impregnation enhances the workpiece’s integrity by fortifying the internal structure, providing a robust solution for maintaining component quality under various manufacturing conditions.

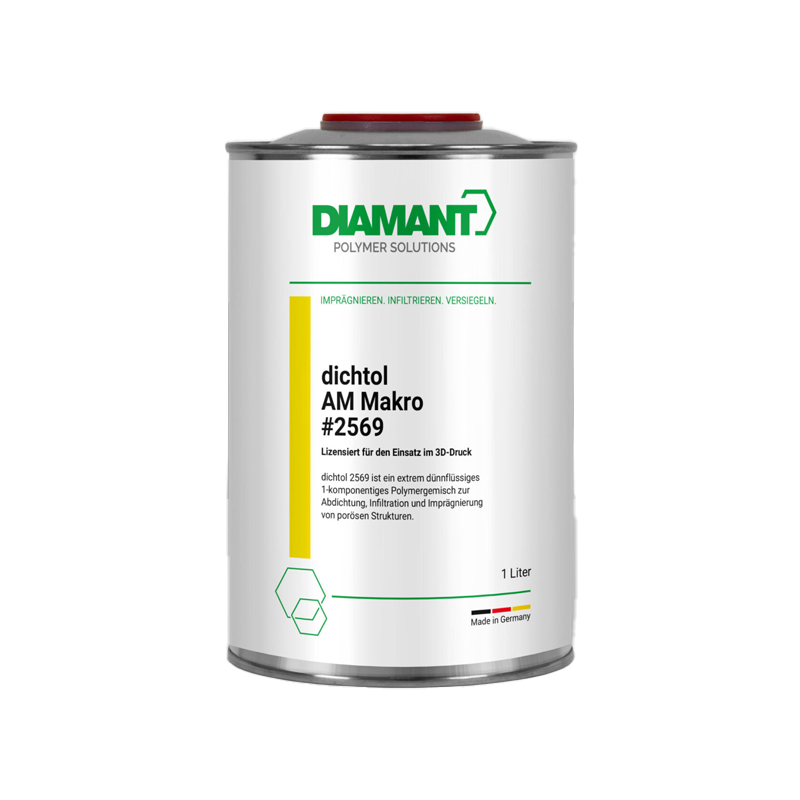

Image 1: The different formats of the Dichtol AM products. Source: Diamant.

Beyond merely sealing, the high-performance polymer of Dichtol integrates itself firmly within the treated material, ensuring reliable sealing even under fluctuating temperatures. This process not only improves the surface finish but also enhances the fundamental properties of the workpiece, such as increasing the strength of brittle materials and maintaining dimensional stability. Furthermore, Dichtol is highly resistant to physical, chemical, and thermal stresses, preserving the technical properties of the workpiece. This makes it an ideal solution for a range of applications, including rapid prototyping, rapid manufacturing, and rapid tooling, significantly benefiting various processes and materials through post-treatment with Dichtol infiltrate.

The available variants

The Dichtol line is licensed for use in 3D printing and it offers a diverse range of impregnating products tailored to meet specific application needs and material characteristics. The variants include AM, AM Makro, AM Hydro, and AM UV Protection, each designed with unique properties to address distinct challenges in additive manufacturing. These variants are available in many different formats, ensuring compatibility with different treatment requirements and facilitating optimal performance across various use cases.

AM (#2567) / AM Spray (#2568) / AM Makro (#2569) / AM Makro Spray (#2570)

Due to their special formulation, AM and AM Spray are ideal for fine porous structures from 0 to 0.1 mm whereas AM Makro and AM Makro spray is more suited for the effective sealing of larger pores from 0.1 to 0.5 mm. Dichtol AM penetrates and seals autonomously without the need for vacuum or pressure, and cures under ambient conditions. AM Makro, thanks to its slightly higher viscosity, ensures high pressure tightness even in complex structures. Both variants (AM and AM Makro) are PMMA-based.

Video 1: Dichtol AM Makro. Source: Diamant.

Thanks to the versatile spray and can formats, both AM and AM Makro can be applied via dipping, injecting, brushing (only #2567 and #2569), or spraying (all). Thanks to their portable and convenient format, the spray variants offer the benefit of being used to ensure temporary corrosion and transport protection. Furthermore, both AM and AM Makro guarantee a permanent temperature resistance of -40 ºC to +300 ºC, and are approved for drinking water and food use.

TECHNICAL DATASHEET
