Name: BASF Ultrafuse 316L 3kg
SKU: BASF316L
Availability: InStock

BASF Ultrafuse 316L 3kg

479,00€ ME ΦΠΑ

Availability: In Stock

SKU: BASF316L

Το BASF Ultrafuse 316L φέρνει την εκτύπωση μετάλλου στον οικιακό ή επαγγελματικό σας FDM εκτυπωτή. Τα τρισδιάστατα εκτυπωμένα αντικείμενα αποκτούν τις τελικές τους ιδιότητες όπως σκληρότητα και αντοχή μέσω μίας πρότυπης διαδικασίας debinding και sintering που έχει αναπτυχθεί από την BASF. Ώς νήμα, το Ultrafuse 316L αποτελείται κατά 80% από ανοξείδωτο ατσάλι ενώ το υπόλοιπο 20% αποτελείται από πολυμερές που του επιτρέπει να εκτυπώνεται εύκολα σε πολλούς επιτραπέζιους 3D εκτυπωτές.

Tα εκτυπωμένα κομμάτια πρέπει να αποσταλούν στην BASF για να γίνει η διαδικασία μετατροπής από το green part στο τελικό sintered μεταλικό αντικείμενο. Απαιτείται κουπόνι για την πληρωμή της υπηρεσίας.

Ακολουθήστε τα guidelines ΕΔΩ

Stainless Steel Metal Filament for your desktop! Designed for ultimate ease of handling on conventional Fused Filament Fabrication 3D printers. Ultrafuse 316L is an innovative filament for the production of 316L-grade steel parts.

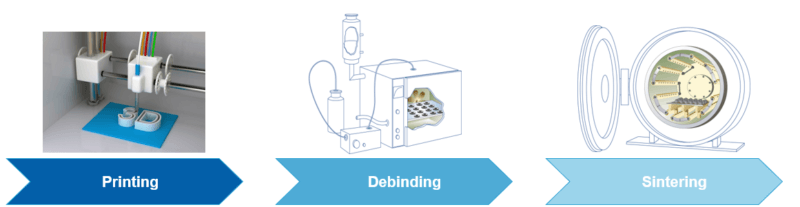

Ultrafuse 316L combines greater freedom of design with a low total cost of ownership. 3D-printed parts acquire their final properties, for example in terms of hardness and strength, through a debinding and sintering process developed by BASF, which has emerged as the industry standard. As a filament, Ultrafuse 316 L is 80% stainless steel and has a 20% polymer content which allows for easy printing on many open FFF desktop printers.

Ultrafuse 316L is cost-effective because:

Our filament works with any open FFF printer, which means low investment cost in hardware
We make use of a highly efficient and established post-processing technology used in the Metal Injection Moulding (MIM) industry
As this is a filament, material handling is much safer and very easy. This allows an easy material exchange in comparison to handling with fine metal powders

BASF | Ultrafuse® 316L Metal Infused Filament in 1.75mm

Designed for ultimate ease of handling on conventional Fused Filament Fabrication 3D printers. BASF Ultrafuse® 316L is an innovative filament for the production of 316L-grade steel parts.

BASF Ultrafuse 316L Stainless Steel 3D Printing Filament 3DHUBgr

Properties

Produces parts of stainless-steel type 316L
Easy handling
Uniform particle distribution enhancing mechanical properties
OSHA-friendly processing
High flexibility allows funneling through complex idler pulleys and guide-roller filament transportation systems in any printer
Compatible with both Bowden and direct drive extruders through the use of a non-slip outer surface
Shrinkage during sintering requires adjustment during part design

Print Settings

Nozzle Temperature: 230 – 250°C
Bed Temperature: 90 – 120°C
Bed Material: Glass + approved glues* / polyimide tape (*Dimafix® suggested)
Nozzle Diameter: ≥ 0.4 mm
Print Speed: 15 – 50 mm/s

Highlights

BASF Ultrafuse^® 316L combines greater freedom of design with a low total cost of ownership. 3D-printed parts acquire their final properties, for example in terms of hardness and strength, through a debinding and sintering process developed by BASF, which has emerged as the industry standard.

BASF Ultrafuse^® 316L formulates thermoplastic binders with 90 mass percent of highly-refined metal particles. As a filament, the metal-polymer composite comes with none of the occupational and safety hazards associated with the handling of fine metallic powders, turning 3D printing of stainless-steel parts affordable, straightforward, and safe.

Which 3D printers should I use with Ultrafuse^® 316L?

Designed for secure and easy handling on conventional, open-material Fused Filament Fabrication (FFF) printers, Ultrafuse^® 316L comes with a wide processing window. To help you succeed in 3D printing metal parts we provide printer processing guidelines including Ultrafuse^® 316L parameter sets. In addition, consultancy and on-site support are available to help ensure the material performs on your printer.

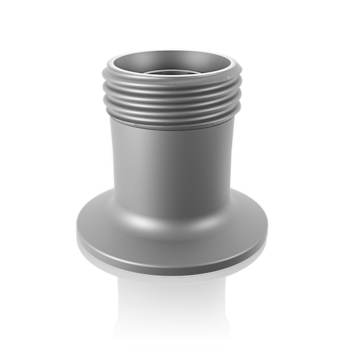

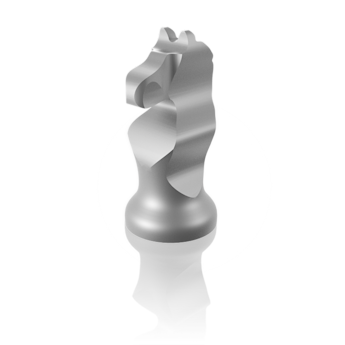

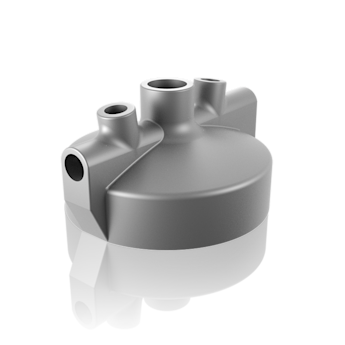

Featured applications

Customer one-offs

Due to its high strength and corrosion resistance, Ultrafuse 316L is the ideal choice for manufacturing parts such as jigs, fixtures, tools, and end-use parts.
