3D Printer Snapmaker 2.0 3-IN-1 with Enclosure

1.549,001.949,00 ME ΦΠΑ

Availability: In Stock
SKU:

Πολυμορφική συσκευή για αυτούς που τα θέλουν όλα! 3D Printer – CNC – Laser engraver όλα μαζί με εξαιρετικές δυνατότητες!

Snapmaker 2.0, the modular 3-in-1 3D printers that unlock your full creative potential, from 3D printing to laser engraving, cutting, and CNC carving.

Snapmaker 2.0 is smarter, faster, larger, and more powerful than ever before. It is a new generation of 3-in-1 3D printers that come with everything you need!

Θα λάβετε το Snapmaker 2.0 συμπεριλαμβανομένων όλων όσων χρειάζεστε για να ξεκινήσετε το ταξίδι σας:

• Γραμμικές μονάδες
• Μονάδα 3D εκτύπωσης
• Μονάδα λέιζερ κοπής (1600mW, ενσωματωμένη)
• Μονάδα CNC (ER11 Collet)
• Ελεγκτής (επεξεργαστής Cortex-M4)
• Έξυπνη οθόνη αφής 5 “(Android OS, Quad Core A7 CPU @ 1.1GHz)
• Μαγνητικό θερμαινόμενο κρεβάτι με αφαιρούμενο φύλλο εκτύπωσης
• Πίνακας πλέγματος αλουμινίου
• Σετ Wasteboard & Clamp
• Λογισμικό Snapmakerjs 3-in-1
• PLA νήμα (Καρούλι 1kg)
• Περίφραξη (Enclosure)
Διαθέσιμο κατόπιν παραγγελίας σε ~1 εβδομάδα
Clear
Credit module tbi bank 1.1.1

Snapmaker 2.0, the modular 3-in-1 3D printers that unlock your full creative potential, from 3D printing to laser engraving, cutting, and CNC carving.

Snapmaker 2.0 is smarter, faster, larger, and more powerful than ever before. It is a new generation of 3-in-1 3D printers that come with everything you need!

They serve different purposes, but function as one.

Not only does the enclosure add an extra layer of safety, but it also provides a seamless experience of the Snapmaker 2.0 ecosystem. With one single cable, you have access to all the functionalities and settings directly on the touchscreen.

A 3D printer that does not one, not two, but THREE functionalities.



3D printing.

A newly designed cooling system, quick release hot end mechanism, and improved extrusion components in combination elevate the printing quality and consistency.

The 3D printing module supports dozens of materials. You can choose a layer thickness between 0.05 and 0.3 mm. It meets all your needs.

Auto Leveling

Equipped with a proximity sensor, Snapmaker 2.0 can automatically calibrate the heated bed. You can also switch to Manual Mode to calibrate every single point.

Filament Runout Recovery

A filament runout sensor detects the filament status and pauses the machine if the filament runs out. Put in new filament and resume making from the touchscreen.

Power Loss Recovery

Snapmaker 2.0 allows you to quickly resume the interrupted job after a power outage. Simply tap on the touchscreen to resume where it left off.

Stable environment

Ambient temperature is consistent during the printing process. So when you print with ABS, your print is less likely to warp.

Laser engraving and cutting.

The 1600 mW laser module can engrave and cut materials such as wood, leather, and plastic.

The built-in camera enables the Auto Focus and Camera Capture features, which means you can spend less time focusing the laser and get the optimal engraving results more easily.

Auto Focus

Different engraving results at different laser heights are shown without you repeatedly testing for the focal point. The optimal laser height is used automatically.

Camera Capture

The camera automatically takes a picture of the material and uploads it to Snapmaker Luban as a canvas. You can import and edit an image on the canvas directly, then engrave the final image shown in the software with a click. What you see is what you get.

Laser reduction

The panels and doors of the enclosure are made of brown acrylic, which protects you from the laser. The bundle also comes with a pair of OD6 laser safety goggles.

Fume extraction

A controllable fan extracts fumes generated during the laser engraving process.

CNC carving.

The new CNC module uses an ER11 collet, has better concentricity, and outputs more precise and consistent results. You can swap the collet to different sizes and the module is compatible with CNC bits ranging from 0.5 to 6.35 mm in diameters, allowing you to create on a variety of materials.

Choose a spindle speed between 6,000 and 12,000 RPM and work with different materials and projects with ease.

CNC carving platform

The MDF CNC carving platform ensures the accuracy of carving.

Noise reduction

The enclosure reduces the noise level by up to 10 dBA*. Your CNC experience is no longer unbearably loud.

All metal frames.

Both the machine and enclosure use aero-grade aluminum alloy, which brings a new visual experience and provides better cooling and higher rigidity.

Modular design.

Snapmaker 2.0 uses the CAN (Controlled Area Network) bus system, which is widely adopted in car and industrial automation. The machine can work with different modules and transform to different functionalities.

Unbounded customization.

The modular design means that you can switch to different functionalities on the fly. All ports are standardized and more addons will be released in the future.

Responsive 5-inch
touchscreen.

An android based touchscreen with a 4-core high performance processor makes you speed through navigation like you would on a modern smartphone. It supports OTA (over-the-air) upgrades so you can enjoy the latest features as soon as they come out.

3-in-1 software.

Create G-code files and control your Snapmaker 2.0 using our custom slicing software Snapmaker Luban. Use the pre-set settings to skip convoluted adjustments and testing to start making right away.

Wi-Fi remote control.

Connect and control your Snapmaker 2.0 through Wi-Fi using Snapmaker Luban and send files wirelessly.

Door detection.

The machine automatically pauses when either or both doors are opened during laser engraving or CNC carving.

LED strips.

Controllable LED strips let you see your work and all its details.

This is the ultimate making experience of Snapmaker 2.0 platform.

Put them anywhere, any place. No matter if they are in your basement, garage, or workshop. They always look stunning and are safe, thanks to the enclosure.

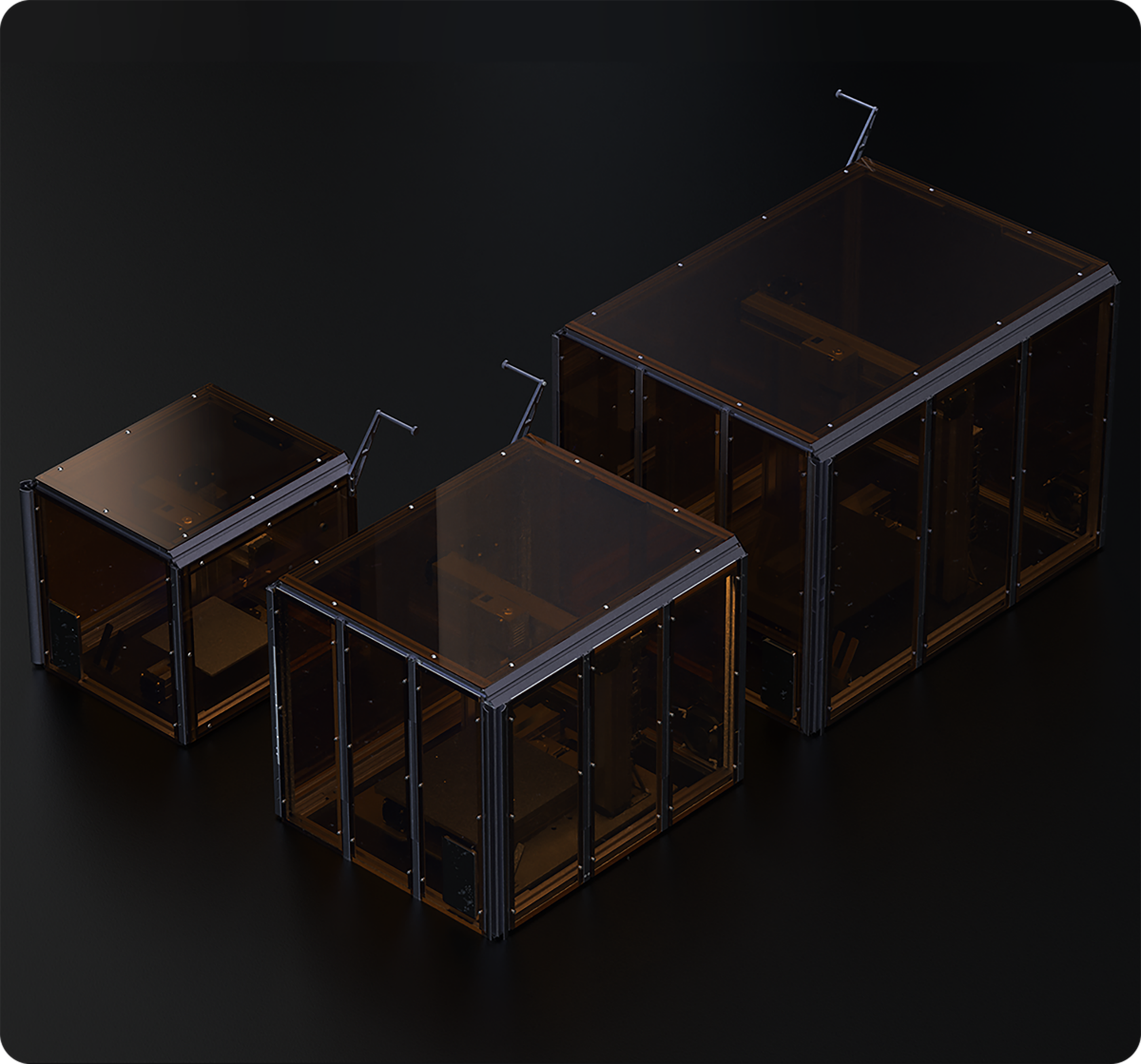

3 sizes, 3 combos.



3D Printing

  • Auto-LevelingBed leveling is a tricky process, especially for inexperienced users. To simplify the process, we’ve added the auto-leveling feature. This means you will print on a leveled heated bed with the newly added induction sensor every single time.
  • Filament Runout Recovery
  • Upgraded Cooling System
  • Flexible Platform

Laser Engraving & Cutting

  • Built-In CameraThe built-in camera allows you to preview your design with whatever material you use. You can edit your design and precisely position it exactly where you want it to be. What you see is what you get!
  • Faster Engraving
  • Aluminum Grid Table

CNC Carving

  • ER11 ColletSnapmaker 2.0 features a fully upgraded CNC module. The new standard ER11 Collet guarantees a better concentricity that allows for a faster CNC carving speed and larger step down. It also supports over one hundred carving and cutting bits.
  • Wasteboard & Clamping Kits
  • Dust Resistance

3D Printer Snapmaker 2.0 3-in-1 with enclosure - 3DHUB.gr

Technical Specifications

General

Frame Material Aluminum Alloys
Connectivity Wi-Fi, USB Cable, USB Flash Drive
Touchscreen 5”, Android OS, Quad Core A7 CPU @ 1.1GHz
Software Snapmaker Luban. You can also use 3rd party software to generate G-code files.
Supported OS macOS, Windows, Linux
Rated Power 320W

3D Printing

A150 160 x 160 x 145 mm
A250 230 x 250 x 235 mm
A350 320 x 350 x 330 mm
Layer Resolution 50 – 300 microns
Nozzle Temperature Up to 275°C
Supported Materials PLA, ABS, TPU, Wood Filled PLA, more being tested
Heated Bed Temperature A150: Up to 110°C
A250: Up to 100°C
A350: Up to 80°C
Design File Formats STL, OBJ, SNAP3DP
Processable Format GCODE

Laser

A150 160 x 160 mm
A250 230 x 250 mm
A350 320 x 350 mm
Camera Built-in Camera
Laser Power 1600mW 450nm Laser Diode
Wavelength 450nm
Safety Class Class 4
Supported Materials Wood, leather, plastic, fabric, paper, non-transparent acrylic, more being tested
Design File Formats SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR
Processable Format NC

CNC

A150 160 x 160 x 90 mm
A250 230 x 250 x 180 mm
A350 320 x 350 x 275 mm
Shank Diameter 0.5mm – 6.35mm (0.02 – 0.25 inches)
Spindle Speed 6,000 – 12,000 RPM
Supported Materials Wood, acrylic, PCB, carbon fiber sheet, jade, more being tested
Design File Formats SVG, JPEG, PNG, JPG, BMP, DXF, SNAPCNC
Processable Format CNC

Επιπλέον πληροφορίες

Επιλογή Μοντέλου

A150 (DISCONTINUED), A250, A350
