Scanpod USOL Laser Foot 3D Scanner

Availability: In Stock

Φορητός σαρωτής, εξειδικευμένος για σάρωση πέλματος για παροχή μετρήσεων αλλά και 3D μοντέλων που θα χρησιμοποιηθούν μετέπειτα για σχεδίαση και κατασκευή ορθοπεδικών σολών με cnc ή 3D printing!

Small and light. Reliable after years of field use worldwide. Fast true 3D laser scan. Auto landmark, measurement, and diagnostic. Custom shoes and orthotic insoles fabrication for foot clinics. Prefab shoes and orthotic insoles selection for retail stores.

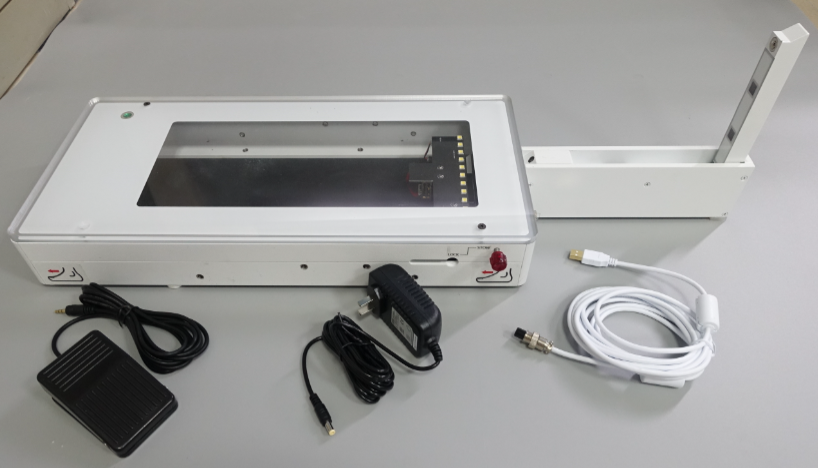

scanpod-usol-foot-3d-scanner-3DHUBgr

USOL Features (New)

More measurement metrics
More accurate Arch Index
More elaborate PDF report
Direct to FTP sending file after Save
Double-Scan mode: Relaxed/Corrected for Before/After compare
Scan Modes allow exposure value change
Customize PDF report format

Automatically identify 2 met points if blue markers are placed
Much more reliable hardware design
Much easier repair/replacement of parts (on-site)
Foldable heel camera with laser on USOL
Front vertical toe laser help align foot/ankle
Supports normal scan speed with low-cost CPU
Wechat/Facebook integration (to be finished…)

scanpod-usol-foot-3d-scanner-3DHUBgr

USOL Features (carried over from LSR/LSR-DUO)

Auto diagnostic for arch type, hallux, and heel (manual)
Mark landmarks on foot then drag points to match
Foot report with manual annotations
Export to STL/WRL, JPG/PNG, PDF report, CSV data files
FTP send order to orthotic insole/shoe fabrication
Change interface language to your local language

Customize software logo, sell your own brand
Customize RX form for custom shoe/insole
For programmers: CMD/TCP call scanner to receive dataintegration into your own CAD software and database
Encrypt scanners to lock files
Custom top plate and side panel design

scanpod-usol-foot-3d-scanner-3DHUBgr

Comparison

Foot/Foam Box/Plaster Cast	Yes/Yes/Yes
Foot: Non/Full/Semi-Weight	Yes/Yes/Yes
Indoor Lighting Conditions	Yes, no darkroom or shielding required. But should avoid direct sunlight.
3D Accuracy	Clean 3D Mesh. +/-1.0mm. USOL has better 3D resolution.
3D output file STL/WRL Color Texture (Round-Trip)	Yes/Yes. WRL supports color texture on 3D file. Yes. A unique feature not found on other 3D foot scanners.
Heel Camera/Heel Laser/Toe Laser	Yes/Yes/Yes
Size (mm) / Weight(Kg)	49023069 /4.7
Scan Volume (mm)	33014080
Load Capacity	180 Kg
Minimum CPU —Normal Speed Scan —High Speed Scan Minimum RAM USB Port 2.0 or 3.0	Atom Z8350 (2.9 sec) I5-6200U (1.9 sec) 4G Yes
Windows 7/8/10	No/No/Yes. Win10 only
Power Supply (adapter)	100~240V 50/60HZ AC to DC 12V/3.0A. Worldwide compatible. Major country plug types are provided.
Warranty (Limited)	1 Year (per warranty statement)
