eviXscan 3D Heavy Duty Quadro+ 3D scanner

Availability: In Stock

Βιομηχανικής χρήσης τρισδιάτατος σαρωτής με 4 κάμερες για δυνατότητα πολλαπλού εύρους σάρωσης, παρέχοντας ευελιξία και ακρίβεια σε στόχους κάθε μεγέθους!

Quadro+ replaces the highly successful previous HD Quadro dual-band scanner. However, it is not a newer version, but a completely new scanner designed from the scratch.

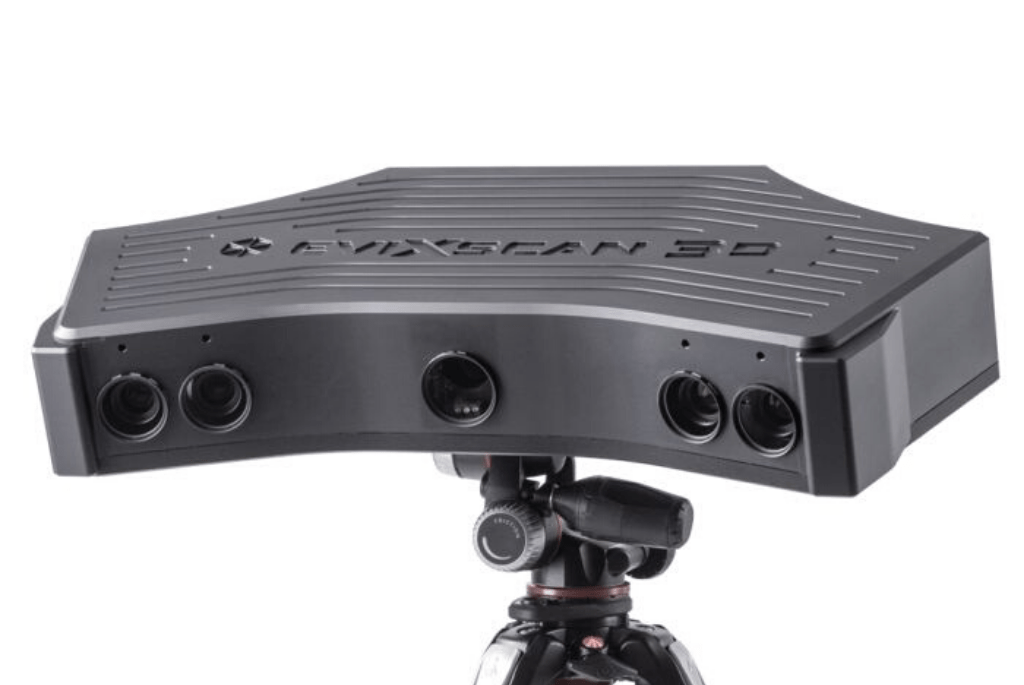

The eviXscan 3D Heavy Duty Quadro is distinguished by sealed, encapsulated housing made entirely of oxidized aluminum, which securely protects the interior of the scanner from accidental mechanical damage, moisture and dust. The scanner’s optic is placed on a temperature-resistant carbon fiber beam. This ensures the geometry of the optical system is preserved, even in the case of a sudden temperature change.

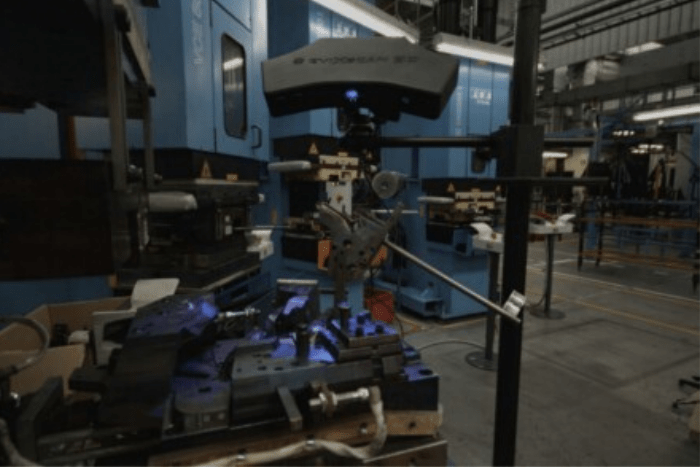

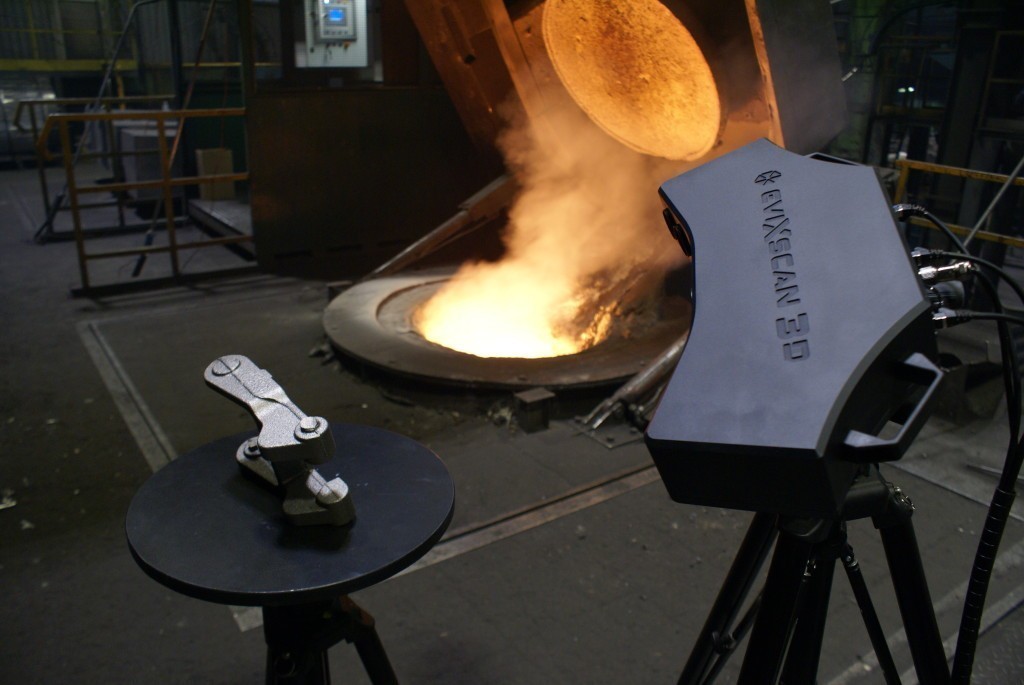

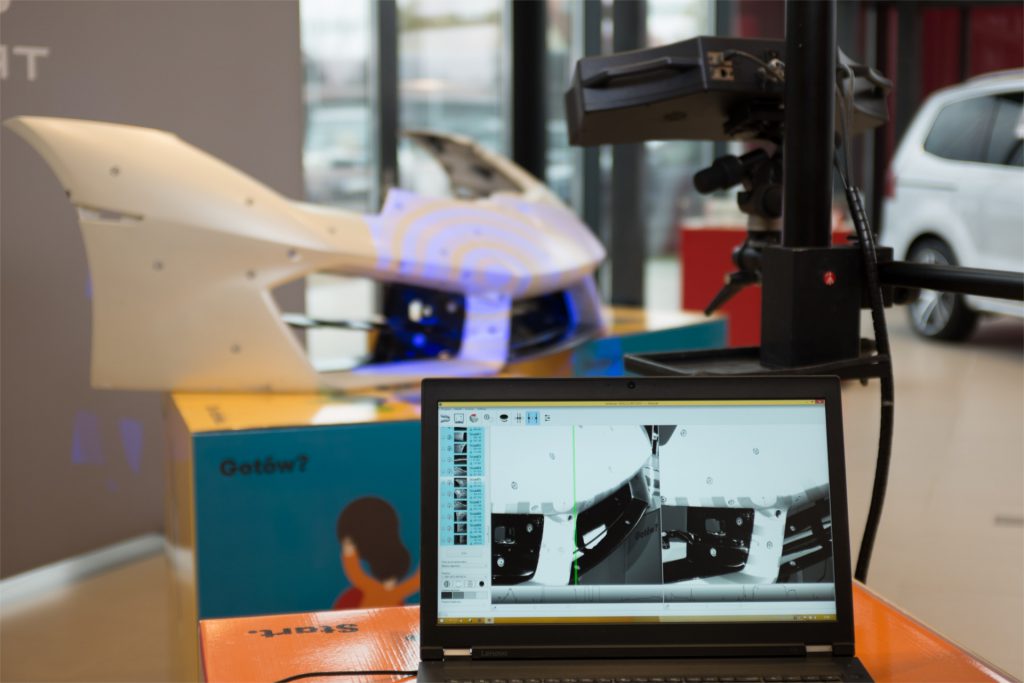

The eviXscan 3D Heavy Duty Quadro scanner is perfect for direct and continuous work on shop floors, production lines and in regularly changing temperature and light conditions, also in outdoor conditions. It is most often used in foundries, tool shops, as well as in automotive and aerospace industry.

Two scanning ranges are the Quadro+‘s most important feature for versatility. They allow both the precise measurement of small parts with very high accuracy and the rapid geometry measurement of large objects.

The device’s inner range enables objects from 120 to 450 mm in size to be scanned efficiently. In case of the outer range the recommended size of the scanned items is from 250 to 1000 mm.

The ability to combine point clouds from the two ranges significantly increases the scanner’s range of applications. Quadro+ is very versatile and can be easily integrated with robots and cobots on production lines.

Advantages of the Heavy Duty family Accuracy, durability, ease of use

High quality lenses and cameras, certified accuracy according to VDI / VDE 2634 Part 2, 4.1 Ps, high mechanical stability of optics systems due to the usage of carbon fibre in the construction, strong light source uses Power LED technology, two scanning ranges in one device, complete system in mobile case, high resistance to dust and humidity, low power consumption, self-calibration option.

Two scanning ranges in one device

The ability to scan in two measuring ranges (narrow and wide) makes the Heavy Duty scanner a versatile device that allows scanning of objects of varying sizes and complexity.

Software

Intuitive eviXscan software in English and Polish, export results to most popular formats (stl, ply, obj, asc, bin), basic point cloud and triangle mesh editing capabilities, software update.

Narrow scanning range

In the narrow range, the cameras are positioned closer together, allowing a measuring range of 210 x 145 x 90 mm. This ensures the highest accuracy and point density. This range is recommended for scanning very complex shapes and small dimensions.

Scan even dark objects

Thanks to a high powered LED Quadro+ can scan dark object in short time. The minimum scan acquisition time is now 1.2 seconds.

Wide scanning range

In this range, the cameras are positioned further apart, allowing a measuring range of 370 x 265 x 150 mm. This ensures the accuracy and density of points needed to scan larger objects.

Technical specifications:	eviXscan 3D Quadro + :
Light source type	Blue LED
Number and type of cameras	2 x 12 Mpix , 2 x 9 Mpix
Scanning accuracy according to DE VDI/VDE2634 Part 2, 4.1 P	up to 0.007 mm
Scanning time	1.2 second
Measuring range	Inner: 220 x 160 x 90 mm Outer: 450 x 225 x 180 mm
Points density	Inner: 351 pt/mm² Outer: 88 pt/mm²
Computer connection	USB 3.0
Export formats	stl, ply, obj, asc, bin
Hardware requirements	Windows 10 (64 bit)
Software	eviXscan 3D Suite

Επιπλέον πληροφορίες

Light-source type	Blue LED
Number and type of cameras	4 x 5 Mpix
Scanning accuracy according to DE VDI/VDE2634 Part 2, 4.1 Ps	up to 0.013 mm
Scanning time	5 seconds
Measuring range	Outer: 370 x 265 x 150 mm Inner: 210 x 145 x 90 mm
Points density	Outer: 50 pt/mm2 Inner: 161 pt/mm2
Computer connection	USB 3.0 + HDMI
Export formats	stl, ply, obj, asc, bin
Hardware requirements	Windows 10 (64 bit), 16 GB RAM, CPU i5
Software	eviXscan, eviXscan 3D Suite
Dimensions (LWH)	520 x 280 x 95 mm
Weight [kg]	7
