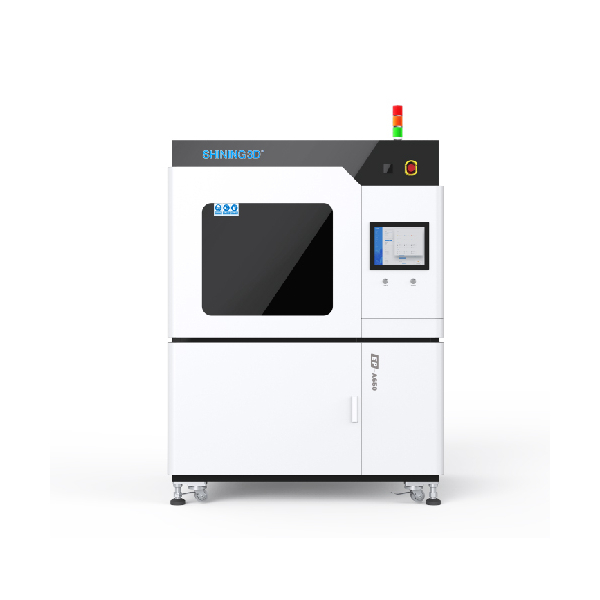

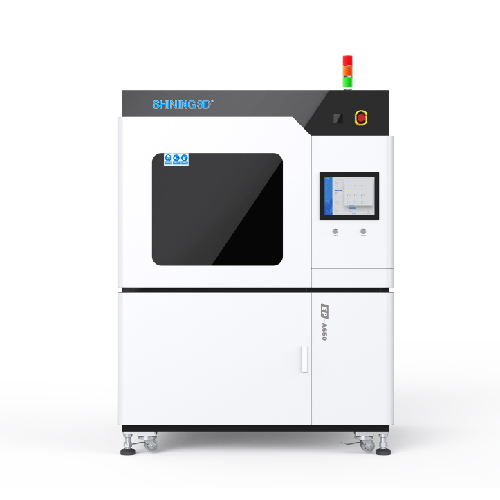

EP-A650 Resin 3D Printer

Availability: In Stock



Επαγγελματικός βιομηχανικός εκτυπωτής SLA Resin από τον κορυφαίο στο είδος αυτό κατασκευαστή EPLUS3D, τεράστιο build volume και σημαντικές κατασκευαστικές καινοτομίες που χαρίζουν ποιότητα εκτύπωσης και αξιοπιστία!

EP-A650 RESIN 3D PRINTER

EP-A650 3D Printer Stereo Lithography is developed by Eplus3D,
which is professional in 3D printing technology.

The system is user friendly with high stability, care-free maintenance and perfect printing result.

Features

Stable & Reliable

  • Dense high precision marble moving substrate
  • Self-developed software, support continuous upgrade
  • Automatic detection & calibration by functional module ensure working stability
  • Optimized structure, less maintenance

High Efficiency

  • Patented VarioBeam technology
  • High-speed scan
  • Brand-new software brings one-click print and outstanding performance

High Accuracy

  • Self-developed 3D optical high-precision calibration technology
  • Avoiding the influence of human factors

User-friendly & Intelligent

  • Provide different processing parameter package
  • Broad application flexibility
  • Remote control available

New Software

EP-Resin, machine controlling software

Recommended Materials

Somos ® GP Plus 14122

White opaque material, similar as ABS and PBT, an ideal choice for automobile, aerospace and consumption products, also can be used in biomedicine, dental and skin applications.

Somos ® WaterShed XC 11122

Transparent material without color, similar as ABS and PBT, with exceptional clarity and high water-resistance, an ideal choice for automobile, medical and consumption products, including lens, packing, fluid flow analysis, concept models, etc.

Recommended Materials

Somos ® PerFORM

White material, with high heat tolerance, outstanding detail resolution and stiffness, ideal material for a variety of applications including tooling, wind tunnel testing, high temperature testing, electrical casings and automotive housings.

SH8900

White material, with good surface effect and ductility, an ideal choice for hand models, functional parts, models, etc.

Open Platform

Compatible with standard 355 nm photosensitive resin.

Specifications

Machine Model EP-A650
Build Volume (X*Y*Z) 650 x 600 x 400 mm
Layer Thickness 0.05 mm~0.25 mm to choose
Spot Size 0.08 mm~0.2 mm (standard) 0.08 mm~0.8 mm (optional Variobeam)
Build Accuracy* ± 0.1 mm (L<100 mm), ± 0.1% xL (L ≥100 mm)
Laser Diode-pumped solid-state laser Nd:YVO4, wavelength:355 nm
Scanning Speed 15m/s (Max), 6-10m/s (Typical)
Dimensions (L*W*H) 1500 *1300*2200 mm
Net Weight 1050 kg
Resin 250 kg
Power Supply 200-240 VAC, 50/60 Hz, single phase
Software EP-Resin
Input Data *.stl /*.slc/*.cli/*.epi
Working Platform Marble platform (A0 level)
Material Level Position Accuracy ± 0.02
Focus Lens F-theta lens system
Optical Scanning System High-speed scanning galvanometer
Operating Environment Temperature 20-26 ; relative humidity <40% (non-condensing)

Επιπλέον πληροφορίες

Machine Model

EP-A650

Build Volume (X*Y*Z)

650 x 600 x 400 mm

Layer Thickness

0.05 mm~0.25 mm to choose

Spot Size

0.08 mm~0.2 mm (standard) 0.08 mm~0.8 mm (optional Variobeam)

Build Accuracy*

± 0.1 mm (L<100 mm), ± 0.1% xL (L ≥100 mm)

Laser

Diode-pumped solid-state laser Nd:YVO4, wavelength:355 nm

Scanning Speed

15m/s (Max), 6-10m/s (Typical)

Dimensions (L*W*H)

1500 *1300*2200 mm

Net Weight

1050 kg

Resin

250 kg

Power Supply

200-240 VAC, 50/60 Hz, single phase

Software

EP-Resin

Input Data

*.stl /*.slc/*.cli/*.epi

Working Platform

Marble platform (A0 level)

Material Level Position Accuracy

± 0.02

Focus Lens

F-theta lens system

Optical Scanning System

High-speed scanning galvanometer

Operating Environment

Temperature 20-26 ; relative humidity <40% (non-condensing)
