• Delivery: self assembly kit
• Print volume: 600 X 600 X 660 mm (XYZ).
• Machine Size (WxDxH): 906x1060x1,356 mm
• Shipping Weight: 120 KG (depend on add-on selection)

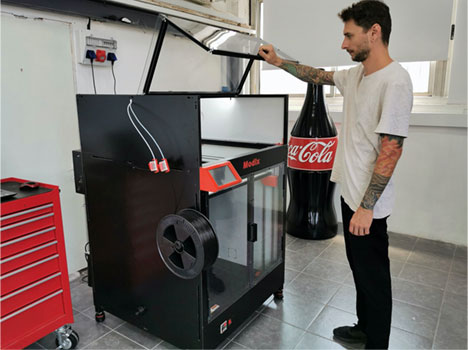

• Enclosure – optional upgrade
• Secondary print head – optional upgrade
• Z Axis Guides: Smooth rods, Hiwin rails – optional upgrade

Chassis & Enclosure

• Solid 40X40 T-slot aluminum profiles
• Powder coated laser cut aluminum brackets and joints

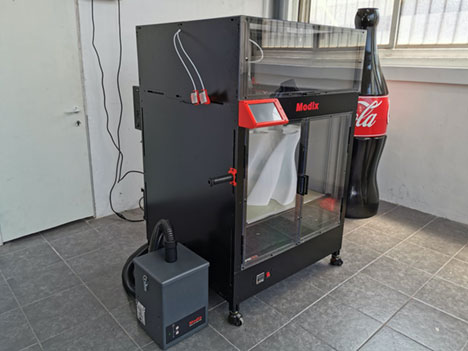

• Enclosure – Closed enclosure made of 3mm black Aluminum Composite Panels (ACP)

3D Printer Controller

Duet 2 WiFi, a powerful 3D Printer controller made in the UK

• Powerful 32 Bit Processor
• Dedicated Wifi module with external antenna
• High speed uSD card and support for a second external SD card if required.
• Dual extruders on the main board, up to 5 more extruders on the expansion board.
• High Power rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A.
• Connect via PC, tablet or smartphone on the same network to the on board web interface.
• Set up your printer and update the firmware through the web interface.
• DUET expansion Board named DUEX 5 already installed by default

Interface

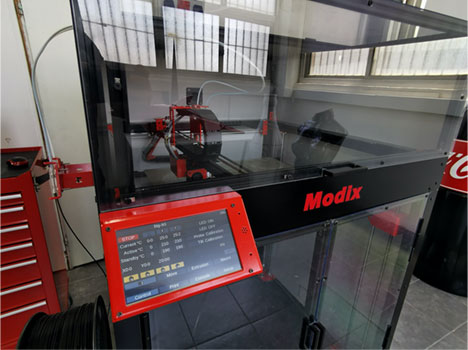

• 7-inch Duet3d touchscreen – integrated with the controller
• WiFi web access for remote control from either mobile or PC allowing users to upload print files directly from their workstation
• SD card slot and USB

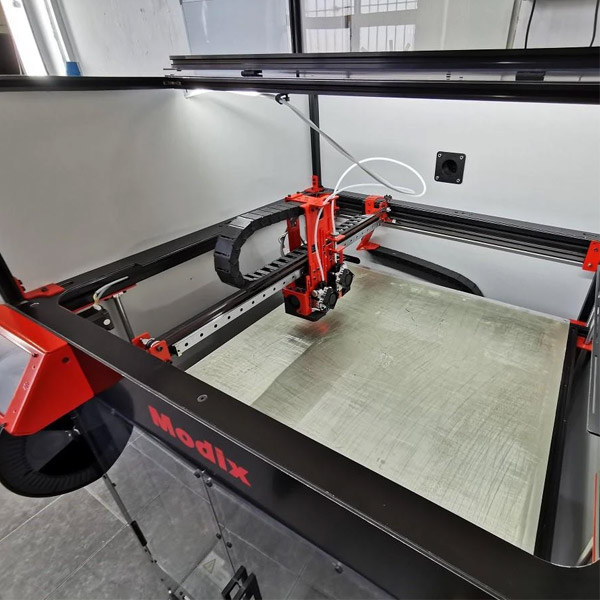

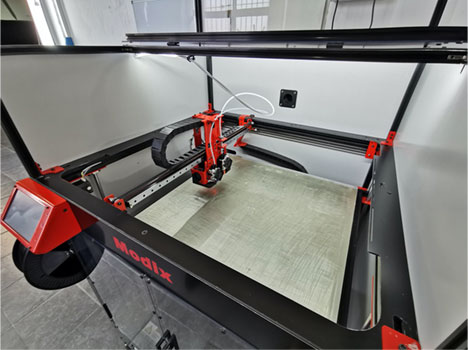

Motion System

• Hiwin MGW9H linear guide rails available as optional upgrade
• Four Z ball screws for Z axis 12mm diameter, 4mm pitch
• 9 mm width Gates GT2 timing belt, reinforced with fiberglass
• Axis Motors: Motech Nema 17 60mm length MT-1705HS200A | Holding Torque: 114oz.in (8.2kg.cm) | Current / Phase: 2.00A |
• Print speed – Normal quality 60 mm/sec, Draft 100 mm/sec, Calculated for 0.4 nozzle. Larger nozzles normally print slower but provide parts much faster due to a reduced number of layers (thicker layer = lower resolution = faster results).

Power

• Support both 110V and 230V
• For electronics: Meanwell 24V 280W Power Supply
  • Protections: Short / Over-load / Over-voltage / Over-heating.
  • No load power consumption<0.5W
  • LED indicator for power on
  • Aviation grade switches and connectors
• Heat Bed AC powered heater 1370 Watt
• PID bed heater controller by Autonic

Print Bed

• 6.35mm thick, Alcoa Mic6 milled cast aluminum plate, made in the USA.
• AC powered bed heater 1370 Watt. Requires additional independent 15A AC source.
• Dual heating zones. Inner 200X200mm size for small objects and lower power consumption.
• Max temperature – 120oc
• Print surface – PEI film with 3M high temp adhesive sheet.

Auto Bed Leveling

• BL touch probe as standard
• Probing of bed shape is kept in controller memory and activated before each print.
• Probing mesh: Big60 – 100 points, 120X – 200 points.

Software

• Open source Duet RepRap firmware. The leading firmware for 3D printing allowing numerous configurations and easy customization using the macro system.
• One can choose from any available slicer and 3D printer controller including: Slic3r, Cura, and Simplify3d (recommended).
  Specific printer configurations are supplied in the customer zone.

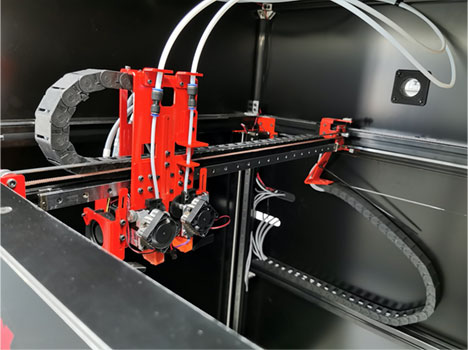

Extruder

• E3D Aero extruder for both primary and secondary extruders.
• Configuration: Main – direct drive, secondary – direct drive.
• Extruder drive gear ratio 3:1 for power and accuracy.
• Nema17 40mm for high power extrusion.
• Adjustable tension idler.

Hot End

• E3D V6 Volcano high-flow heat block – standard.
• Optional E3D V6 for very small items with high details or Super Volcano for high-speed high flow prints, and for printing bulky objects (shown at the photo on the right).
• The 1.75 mm filament diameter is the default, but the end-customer can change it to 3mm filament.
• 0.4, 0.6 & 0.8 mm brass Volcano nozzles.
• Smaller nozzle diameters are available for the standard V6
• Heater cartridge is 24V 40W, max temperature is 285oc by default. Can be converted to a higher temperature of up to 500oc by end-customer by changing thermistor, if needed.
• Part cooling fan – 5015 blower fan

Filament

Our printing head supports almost any existing filament including :
PLA, ABS, composites: Carbon fiber, Wood, Copper, Brass, Magnetic, PHA, PVA , Hips, Nylon, TPE & TPU (flexible) Co-Polyester, PETG

Open Filament – Any filament from any vendor can be used.

Filament Run-Out Sensor – The filament run-out detection sensor will pause the print job when the filament has been used up.
