3D-Bioplotter Family

Availability: In Stock

H οικογένεια των 3D Bioplotter της Envisiontec είναι η καλύτερη πλατφόρμα για έρευνα και ανάπτυξη σε ιατρικές/ερευνητικές εφαρμογές με δυνατότητα ελεγχόμενης εναπόθεσης βιοϋλικών.

Επικοινωνήστε μαζί μας για πληροφορίες!

Category: Professional

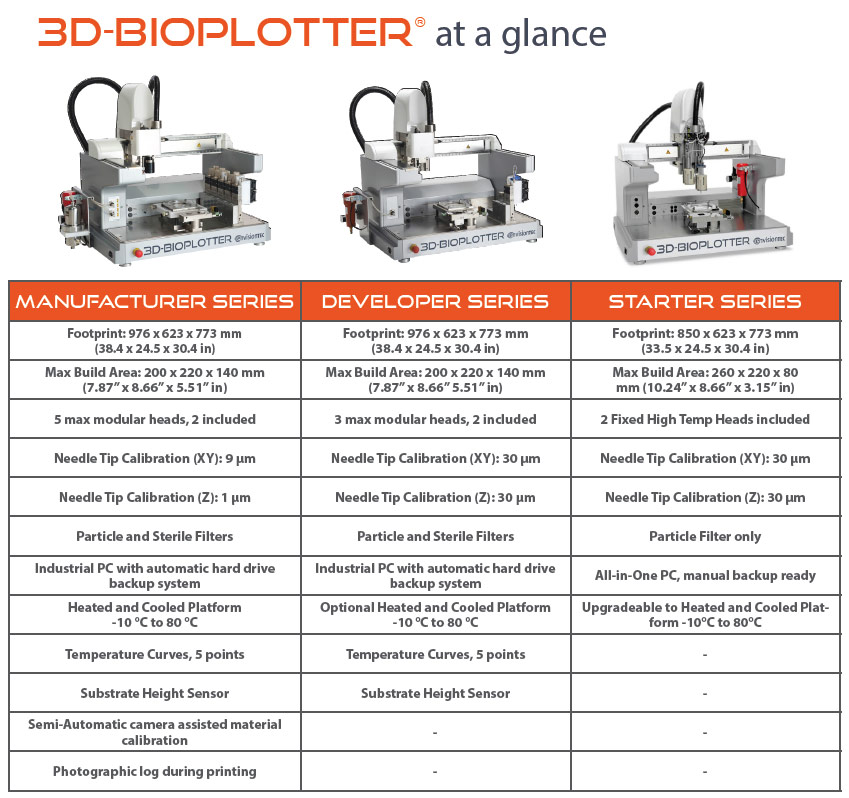

Envisiontec Bioplotter Family Specifications 3DHUB.gr

3D-Bioplotter® Starter Series

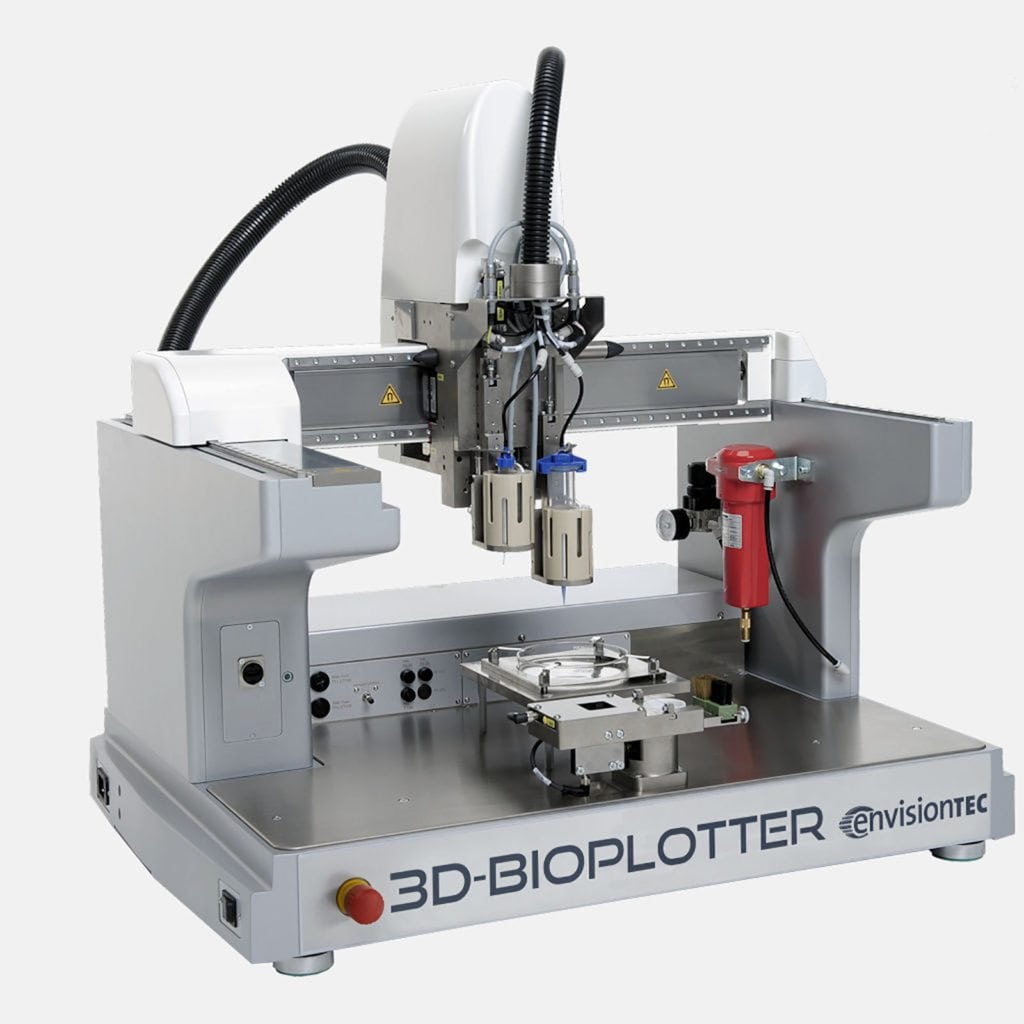

3D Bioplotter starter 3DHUB.gr

Technical Data Research Papers

The 3D-Bioplotter® System is a versatile rapid prototyping tool for processing a great variety of biomaterials for computer-aided tissue engineering (CATE), from 3D CAD models and patient CT data to the physical 3D scaffold with a designed and defined outer form and an open inner structure. The 3D-Bioplotter® has the capacity of fabricating scaffolds using the widest range of materials of any singular rapid prototyping machine, from soft hydrogels over polymer melts up to hard ceramics and metals. Complex inner patterns can easily be designed using the 3D-Bioplotter® software to control the mechanical properties, increase cell adhesion, as well as improve the flow of nutrient media throughout the interconnecting pores of the printed implants.

Designed for research groups new to the field of tissue engineering with few requirements in parallel material processing and automation.
Consisting of the same basic hardware and software as the Manufacturer & Developer Series, but lacking modular capability and platform temperature control.
Not upgradable to the same capability of the Developer or Manufacturer Series.

A simple process: A liquid, melt, paste or gel is dispensed from a material cartridge through a needle tip from a 3-axis system to create a 3D object.

One single requirement: The material to be used must, through a physical or chemical reaction, solidify.

A world of possibilities: The widest range of materials of any 3D printing technology can be processed.

Machine Properties

Filters Included: Particle
Platform Temperature Control: No
Max Heads:2
Head Temperature Range:High: 30° – 250°C (86° – 482°F)
No. of Heads Included:2
Tool Changer Type:Fixed Side-By-Side Tools
Cartridge Sizes:3-30 ml (0.1 – 1.0 fl oz)
Other Usable Modules: None
Platform Height Control:Manual
Needle Calibration:Photo Sensor
Material Calibration:Manual
External Temp. Ports:0
Included PC:Built-in PC
Build Volume (XYZ):260 x 220 x 800 mm (10.24” x 8.66” x 3.1”)
Speed:0.1 – 150 mm/s (0.004” – 5.91”/s)
Minimum Strand Diameter:0.100 mm (0.004”) – Material Dependent
Axis Resolution (XYZ):0.001 mm (0.00004”)

System Properties

A new user management allows users to both share projects, materials and patterns, as well as have their own separate set of files for improved overview and security.
Input of outer shapes through STL files.
Multi-part and multi-material capable through the use of an automatic tool changer and multiple print heads.
Generation of volume support structures for complex shapes.
Database of inner patterns (user-editable) in the controlling software, avoiding requiring patterns in the STL files.
Complex inner pattern with straight lines, zig-zag shapes and wave forms as well as hexagon shapes, including shift functions for “in between the lines” printing
Database of materials (user-editable) with all process parameters.
Material lifetime control to avoid scaffold fabrication with degraded materials.
Complete control of all printing parameters (temperature, pressure, speed, etc) through the software.
Improved surface finish of fabricated parts using randomized start position in outer contours.
2D Dot-Printing (Biopatterning) capability
High-Temperature Print Head: 30° – 250°C (86° – 482°F) with reusable stainless steel cartridges.
Needle cleaning station, with automatic cleaning before and during the print project available.
Luer Lock needle tips, 0.1mm to 1.0mm inner diameter available.
LOG file creation after project completion with all relevant data.
Footprint (L x W x H): 836 x 623 x 773 mm (32.9 x 24.5 x 30.4 in.)
Weight: About 90 kg (198 lbs)

3D-Bioplotter® Developer Series

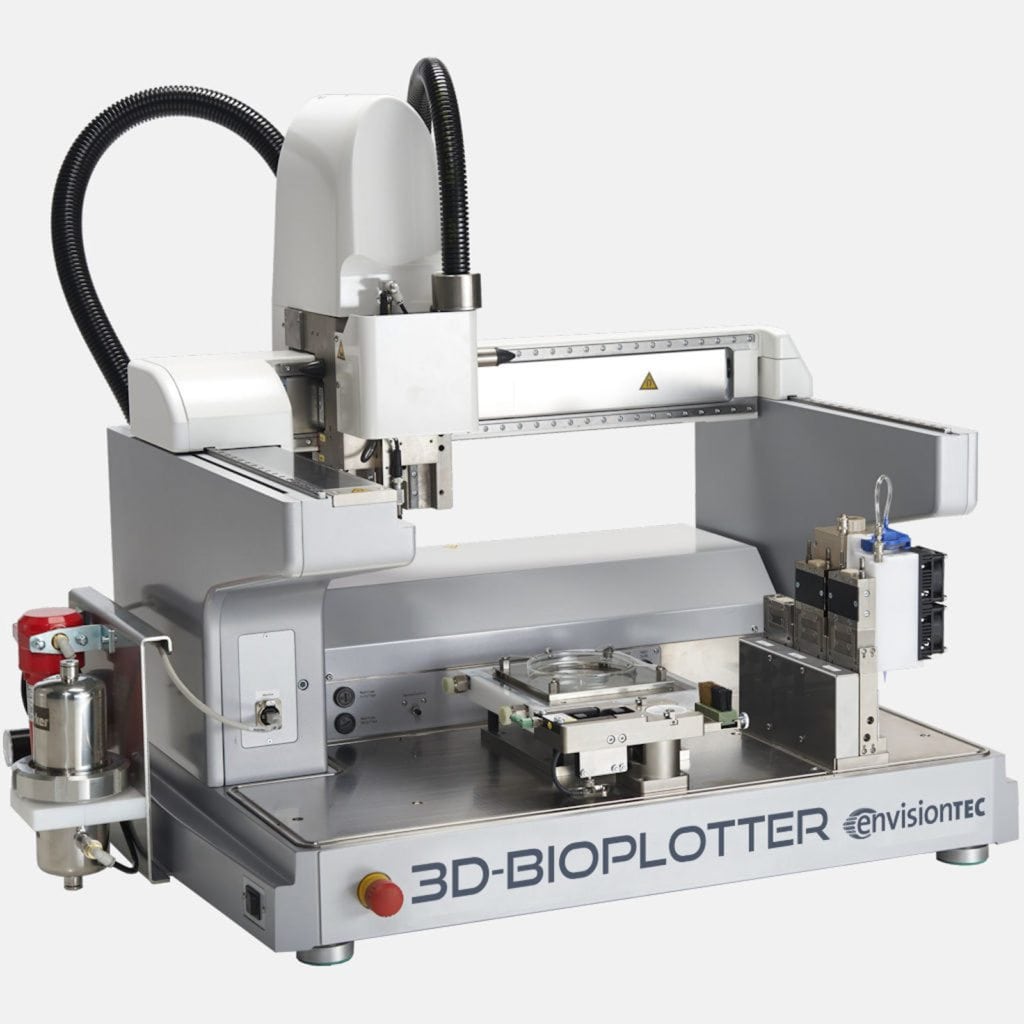

3D Bioplotter Developer 3DHUB.gr

Technical Data Research Papers

The 3D-Bioplotter Developer Series is designed for research groups new to the field of tissue engineering, as well as for specialized use, where limited capability may still meet requirements. It consists of the same basic hardware and software as the Manufacturer Series but with reduced park position functionality. It is still capable of using multiple modular head types and an optional heated platform.

Machine Properties

Filters Included: Particle and Sterile
Platform Temperature Control:Yes (Chiller not included): -10° – 80°C (14° – 176°F)
Max Heads: 3
Head Temperature Range:Low: 0° – 70°C (32° – 158°F) or High: 30° – 250°C (86° – 482°F)
No. of Heads Included: 2
Tool Changer Type: Modular Tool Changer
Cartridge Sizes: 10 – 30 ml (.3 – 1.0 fl oz)
Other Usable Modules: All
Platform Height Control: Automatic
Needle Calibration:Photo Sensor
Material Calibration: Manual
External Temp. Ports: 0
Included PC: Professional PC
Build Volume (XYZ):200 x 220 x 140 mm (7.87 x 8.66 x 5.51 in.)
Speed: 0.1 – 150 mm/s (0.004 – 5.91 in/s)
Minimum Strand Diameter: 0.100 mm (0.004 in.) Material Dependent
Axis Resolution (XYZ): 0.001 mm (0.00004 in.)

System Properties

A new user management allows users to both share projects, materials and patterns, as well as have their own separate set of files for improved overview and security.
Input of outer shapes through STL files.
Multi-part and multi-material capable through the use of an automatic tool changer and multiple print heads.
Database of volume support structures for complex shapes.
Database of inner patterns (user-editable) in the controlling software, avoiding requiring patterns in the STL files.
Complex inner pattern with straight lines, zig-zag shapes and wave forms as well as hexagon shapes, including shift functions for “in between the lines” printing
Database of materials (user-editable) with all process parameters.
Material life time control to avoid scaffold fabrication with degraded materials.
Individual temperature control of each printing head, both in the parking positions, as well as during printing
Temperature curves with up to 5 set points and waiting times.
Complete control of all printing parameters (temperature, pressure, speed, etc) through the software.
Automatic platform height control for petri dishes, well plates, as well as other printing surfaces.
Improved surface finish of fabricated parts using randomized start position in outer contours.
2D Dot-Printing (Biopatterning) capability
Low-Temperature Print Head: 0° – 70°C (32° – 158°F) with disposable PE cartridges.
High-Temperature Print Head: 30° – 250°C (86° – 482°F) with reusable stainless steel cartridges.
UV Curing Head (365 nm).
Needle cleaning station, with automatic cleaning before and during the print project available.
Luer Lock needle tips, 0.1mm to 1.0mm inner diameter available.
Automatic recalibration of park position coordinates in extensively used 3D-Bioplotters (Manufacturer & Developer Series only).
LOG file creation after project completion with all relevant data.
Footprint (L x W x H): 976 x 623 x 773 mm (38.4 x 24.5 x 30.4 in.)
Weight: About 110 kg (243 lbs)

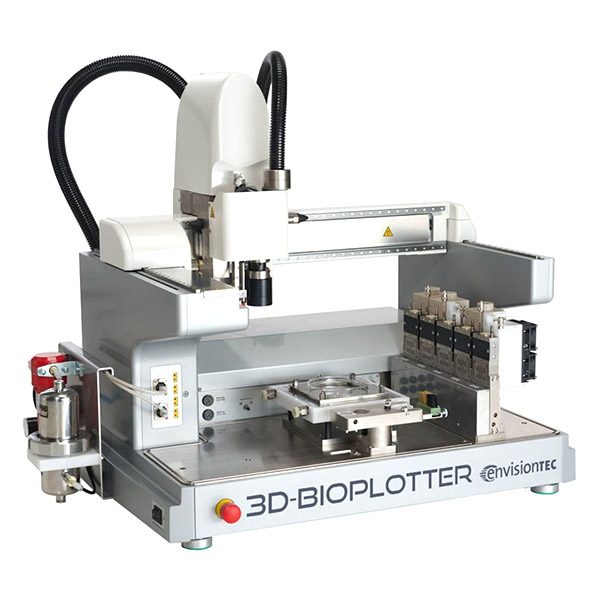

3D-Bioplotter® Manufacturer Series

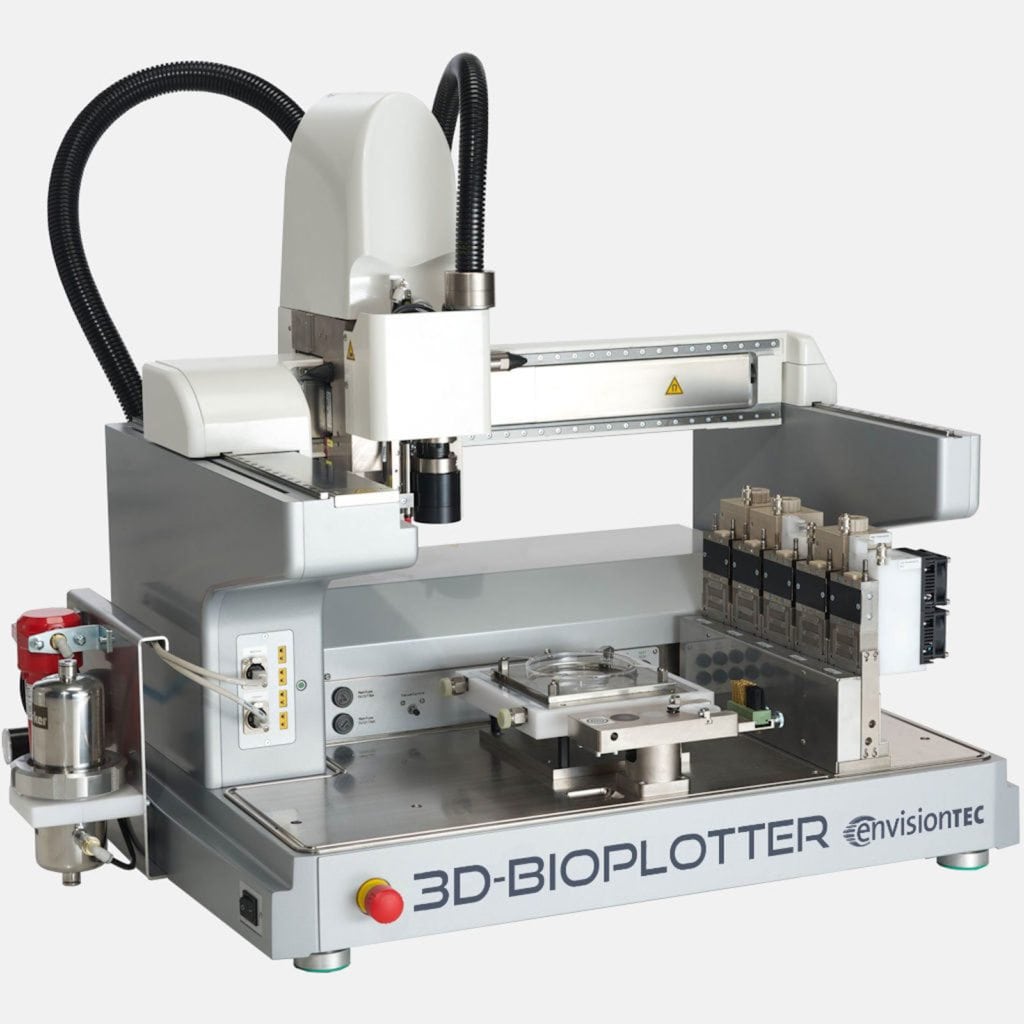

3D Bioplotter Manufacturer 3DHUB.gr — Technical Data Research Papers

The 3D-Bioplotter System is a versatile rapid prototyping tool for processing a great variety of biomaterials for computer-aided tissue engineering (CATE), from 3D CAD models and patient CT data to the physical 3D scaffold with a designed and defined outer form and an open inner structure.

Built-in camera to enhance needle calibration and to ensure consistent prints
Temperature controlled build platform and sensor ports. This allows greater material variety and finely tuned environments for low tolerance scaffolding.
Five cartridges slots for more materials in a single print.

Machine Properties

Filters Included: Sterile and Particle
Platform Temperature Control: Yes (Chiller Included): -10° – 80°C (15° – 176° F)
Max Heads: 5
Head Temperature Range: Low: 0° – 70°C (32° – 158°F) or High: 30° – 250°C (86° – 482°F)
No. of Heads Included: 2
Tool Changer Type: Modular Tool Changer
Cartridge Sizes: 10 – 30 ml (.3 – 1.0 fl oz)
Other Usable Modules: All
Platform Height Control: Automatic
Needle Calibration: Camera
Material Calibration: Semi-automatic
External Temp. Ports: 4
Included PC: Professional PC
Build Volume (XYZ): 200 x 220 x 140 mm (7.87 x 8.66 x 5.51 in.)
Speed: 0.1 – 150 mm/s (0.004 – 5.91 in/s)
Minimum Strand Diameter: 0.100 mm (0.004 in.) Material Dependent
Axis Resolution (XYZ): 0.001 mm (0.00004 in.)

System Properties

A new user management allows users to both share projects, materials and patterns, as well as have their own separate set of files for improved overview and security.
Input of outer shapes through STL files
Multi-part and multi-material capable through the use of an automatic tool changer and multiple print heads.
Generation of volume support structures for complex shapes.
Database of inner patterns (user-editable) in the controlling software, avoiding requiring patterns in the STL files.
Complex inner pattern with straight lines, zig-zag shapes and wave forms as well as hexagon shapes, including shift functions for “in between the lines”printing
Database of materials (user-editable) with all process parameters.
Material life time control to avoid scaffold fabrication with degraded materials.
Complete control of all printing parameters (temperature, pressure, speed, etc) through the software.
Photographic log of the full platform for each layer available for verification of error-free object interior after printing.
Mid-print measurement of strand dimensions using the built-in camera.
Automatic platform height control for petri dishes, well plates, as well as other printing surfaces.
Improved surface finish of fabricated parts using randomized start position in outer contours.
2D Dot-Printing (Biopatterning) capability
Individual temperature control of each printing head, both in the parking positions, as well as during printing
Low-Temperature Print Head: 0° – 70°C (32° – 158°F) with disposable PE cartridges.
High-Temperature Print Head: 30° – 250°C (86° – 482°F) with reusable stainless steel cartridges.
UV Curing Head (365 nm).
Needle cleaning station, with automatic cleaning before and during the print project available.
Luer Lock needle tips, 0.1mm to 1.0mm inner diameter available.
Automatic recalibration of park position coordinates in extensively used 3D-Bioplotters.
LOG file creation after project completion with all relevant data.
Footprint (L x W x H): 976 x 623 x 773 mm (38.4 x 24.5 x 30.4 in.)
Weight: About 130 kg (286 lbs)
