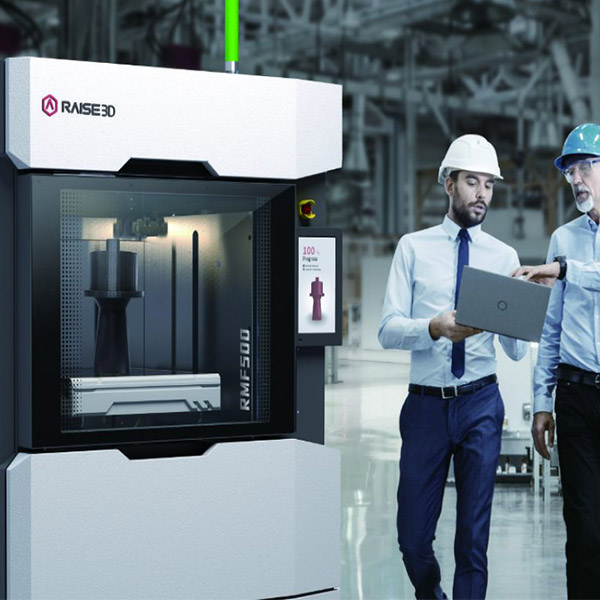

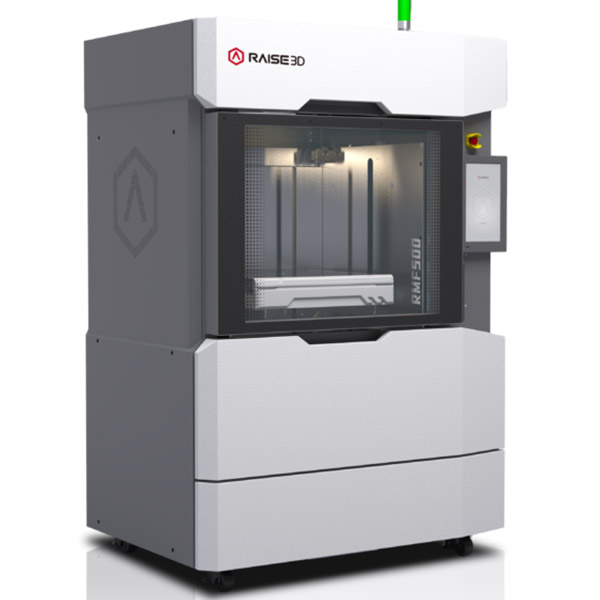

Raise3D RMF500 Industrial 3D Printer

Availability: In Stock



Large Format βιομηχανικός εκτυπωτής από την Raise3D, κατάλληλος για επαγγελματική χρήση σε απαιτητικά περιβάλλοντα.

Ανθεκτικές εκτυπώσεις ακριβείας με υλικά κατάλληλα για automotive και industrial χρήση. Ιδανικός για ταχύτατη παραγωγή πολλών μικρών μοντέλων ή και πολύ μεγάλων!

Φυσικά με την επαγγελματική υποστήριξη του 3DHUB.gr

Categories: ,

RMF500 3D Printer

Flexible Manufacturing Productivity for Composite End-Use-Part Based on FFF Process

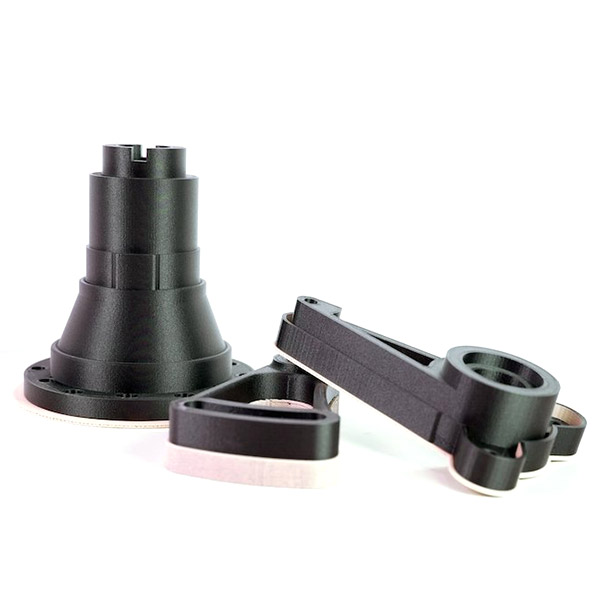

High Performance and Lightweight Fiber Reinforced Material

The RMF500 is specialized in printing complex workpieces with a high strength-to-weight ratio in a single job,
using fiber-reinforced thermoplastics. Raise3D ensures performance from each filament spool, in addition to continuously expanding material choices.

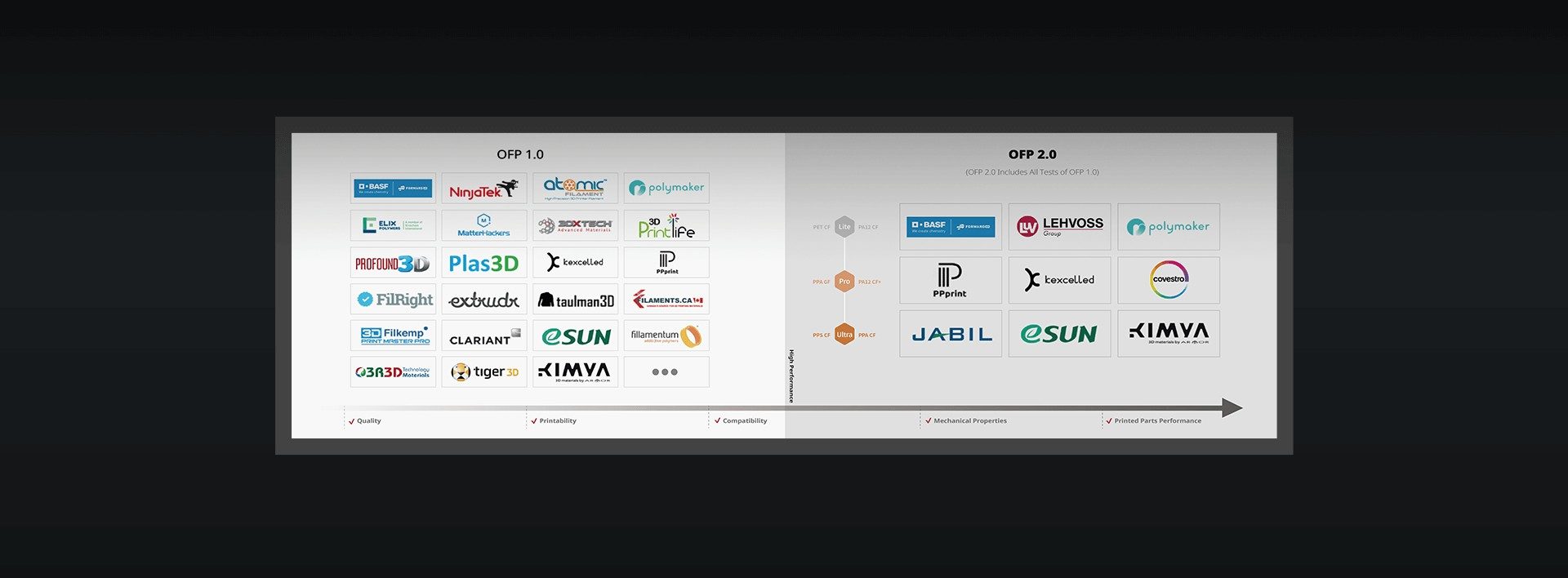

Expanding Filament Spool& Certification

Raise3D’s Open Filament Program (OFP) continuously collaborates with third-party filament manufacturers to identify and select top-performing filaments for Raise3D printers. OFP has now entered phase 2.0, with certified industrial-grade filaments with specific mechanical properties and guaranteed enhanced performance.

3D Printer RMF 500 από τη Raise3D - 3DHUB.gr

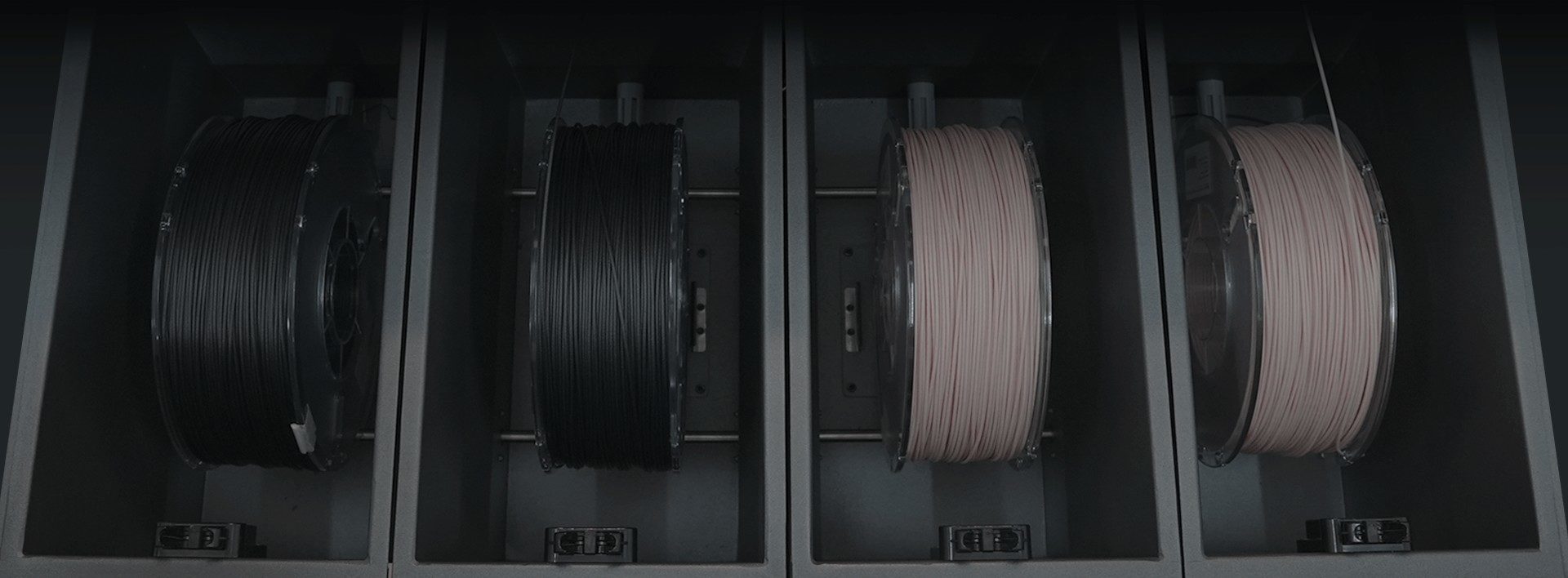

Filament Cartridge

The RMF500 has four large, multipurpose filament cartridges, with each cartridge having a maximum load of 2.5kg, enabling automatic switching and positive pressure humidity control below 5% RH.

3D Printer RMF 500 από τη Raise3D - 3DHUB.gr

High-Grade Nozzle Hardness

The RMF500 uses silicon carbide nozzles with a hardness of over 60 HRC to resist abrasion from carbon fiber and glass fiber materials.

3D Printer RMF 500 από τη Raise3D - 3DHUB.gr

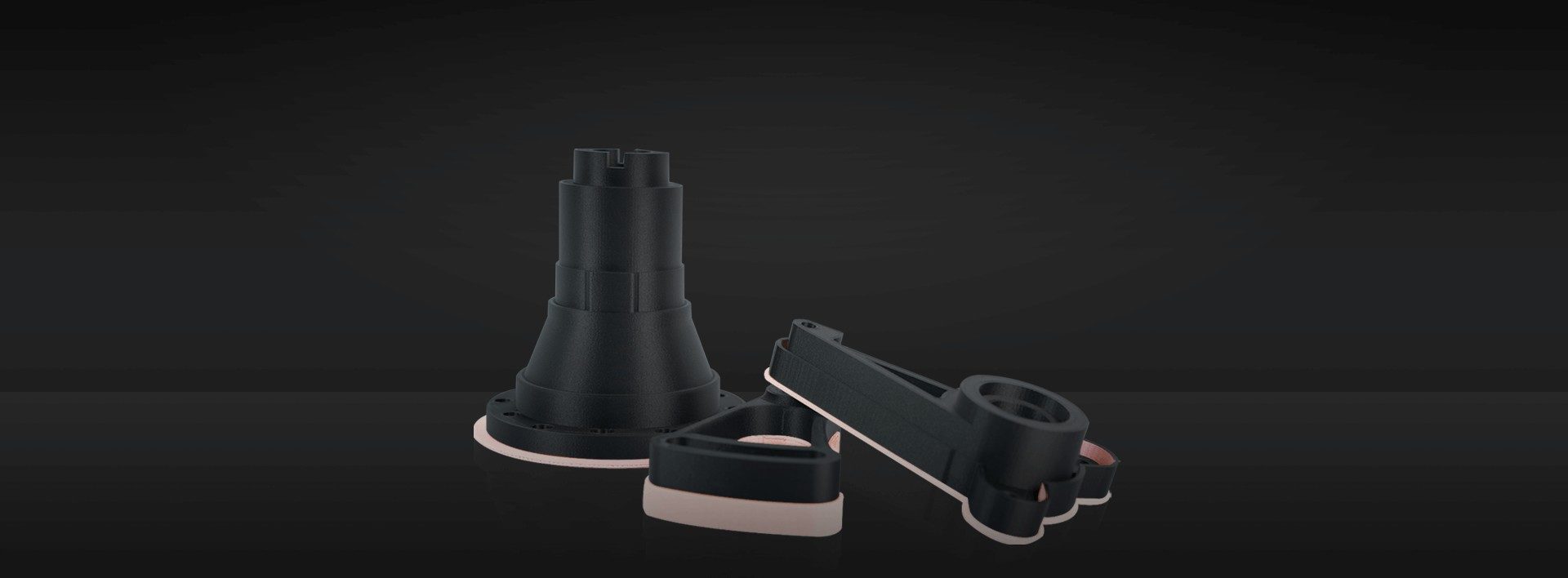

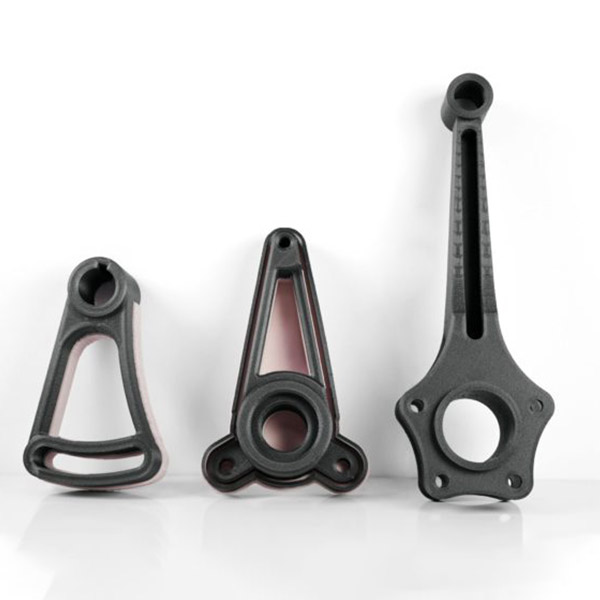

Specialized Support Material

Each Raise3D fiber-reinforced filament is developed with a paired support material. For example, the breakaway support filament for PA12 CF can easily break away, resulting in a clean overhang surface.

3D Printer RMF 500 από τη Raise3D - 3DHUB.gr

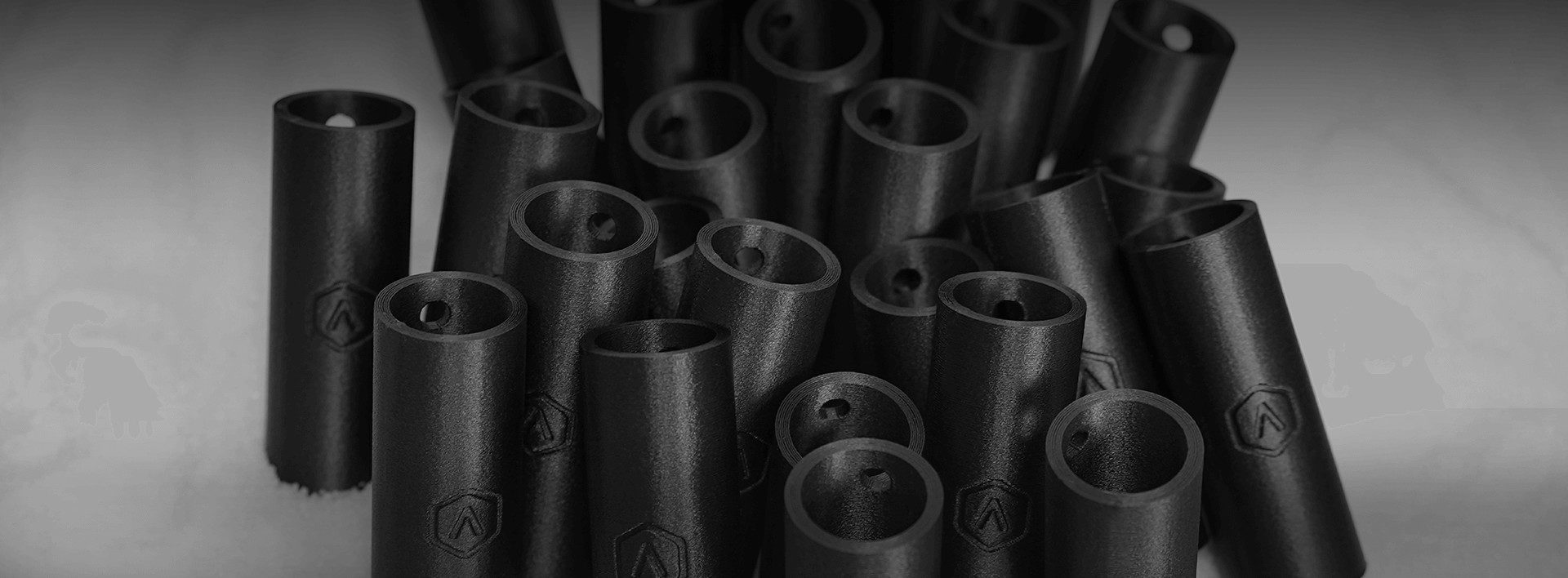

Delivering Productivity and Repeatability

Thanks to the RMF500’s FFF technology, this 3D printer features repeatable positioning accuracy, consistent extrusion flow, a high print speed, and a huge build volume. These features enable the RMF500 to deliver large batches or workpieces in a highly efficient manner.

See Details

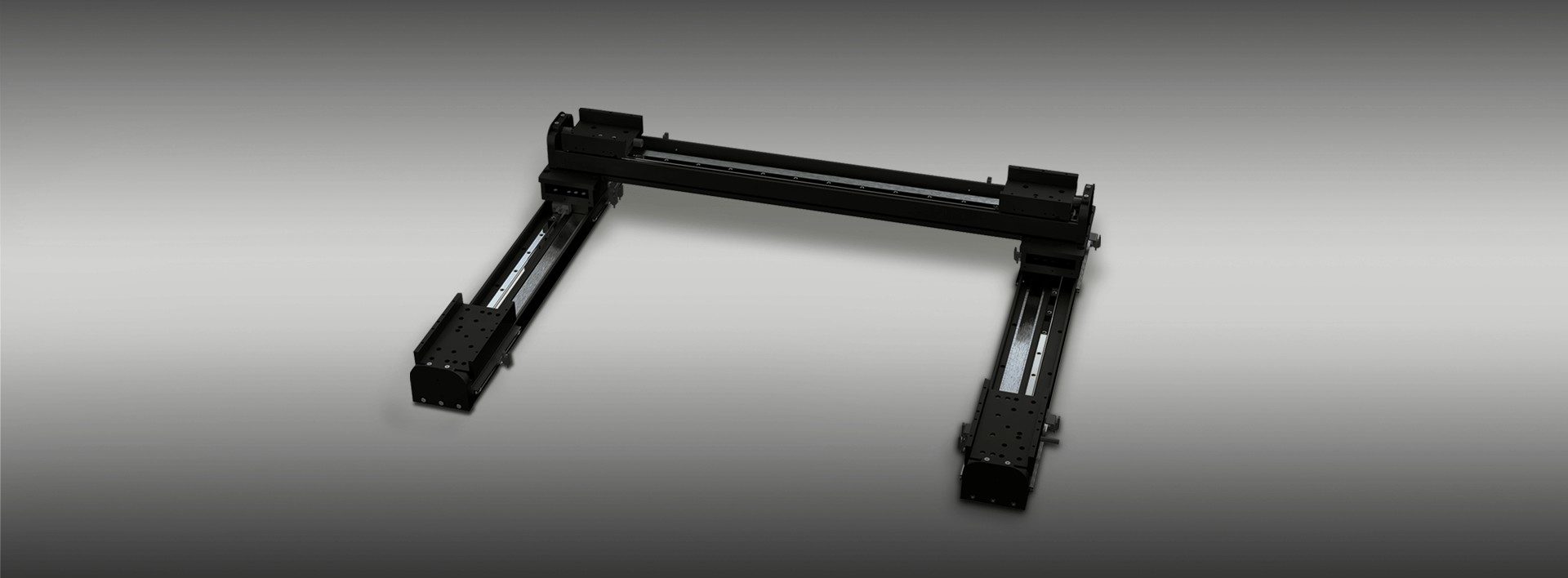

Linear Motor for Speed and Precision

The RMF500 uses a linear motor-driven system, with a 1μm synchronized closed-loop system, which overwhelms traditional system with belts, pulleys, and leadscrews. This linear motor-driven system gives the RMF500 an acceleration of 2G and a speed over 1000mm/s2.

3D Printer RMF 500 από τη Raise3D - 3DHUB.gr

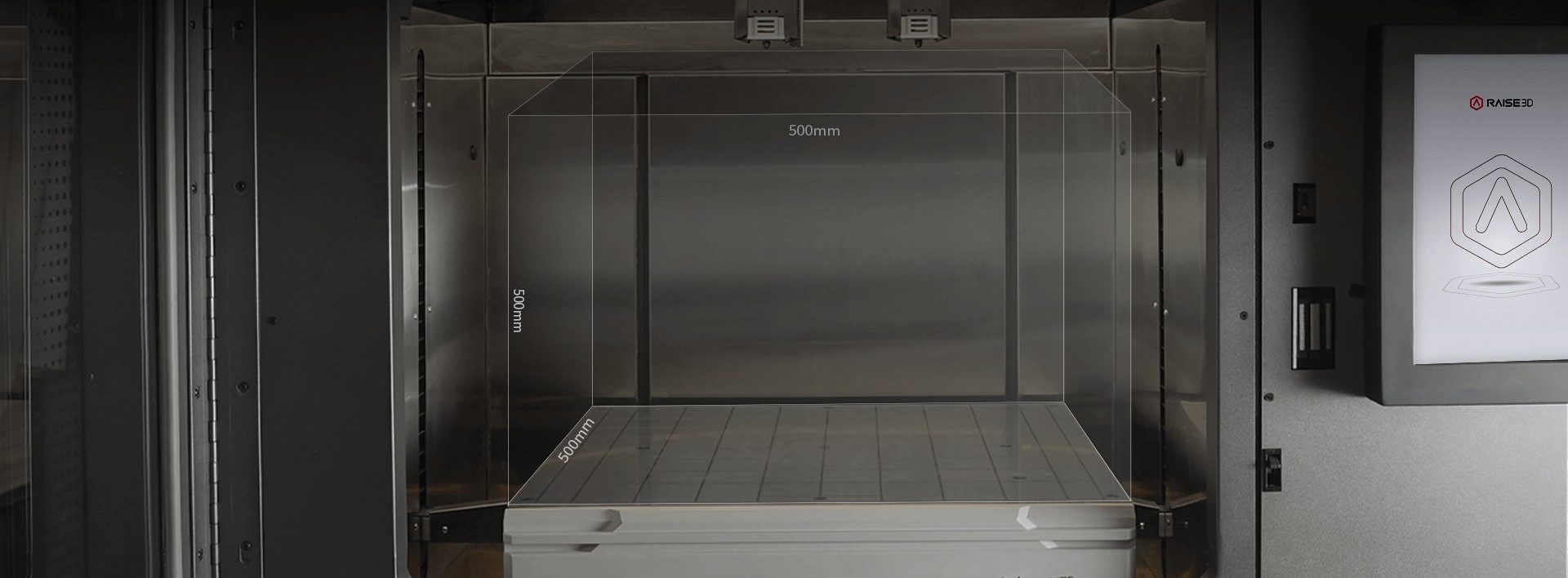

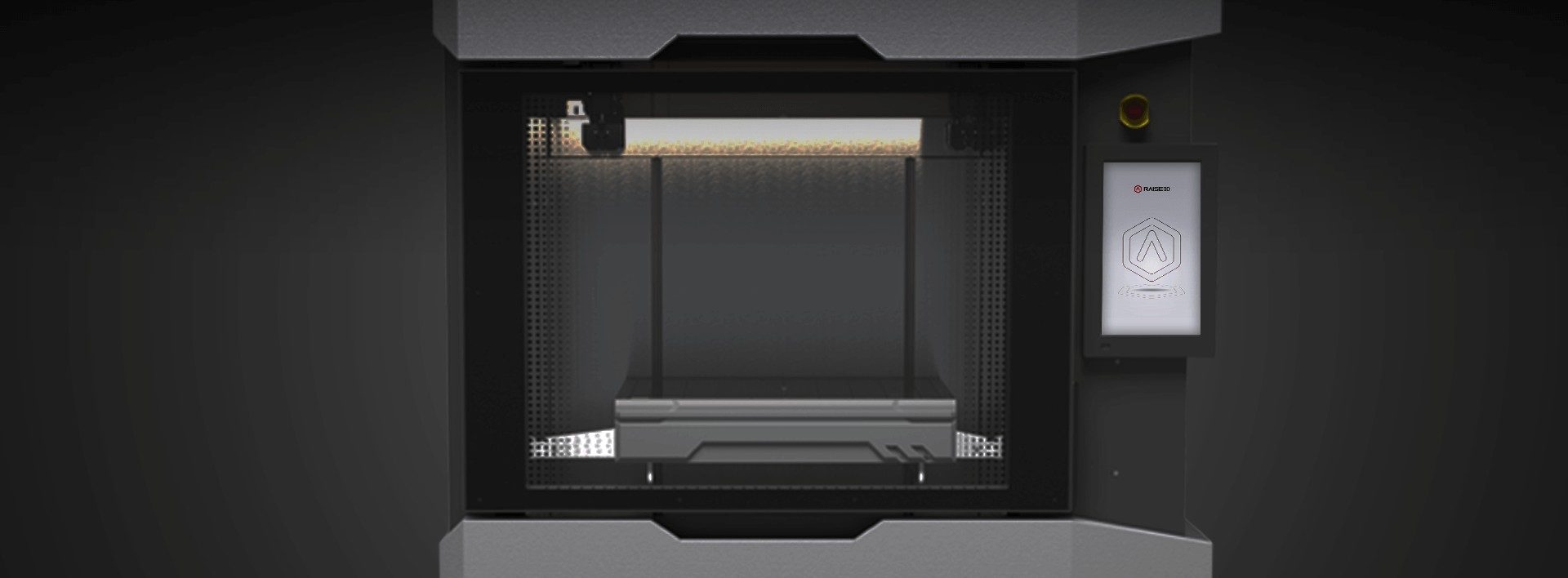

Huge and Reliable Build Size

The RMF500’s build volume is of 500x500x500mm, for both single and dual extruder printing. Its vacuum manifold platform is installed with a PEI building plate with pressure detection to deliver worry-free startup and easy removal of prints.

3D Printer RMF 500 από τη Raise3D - 3DHUB.gr

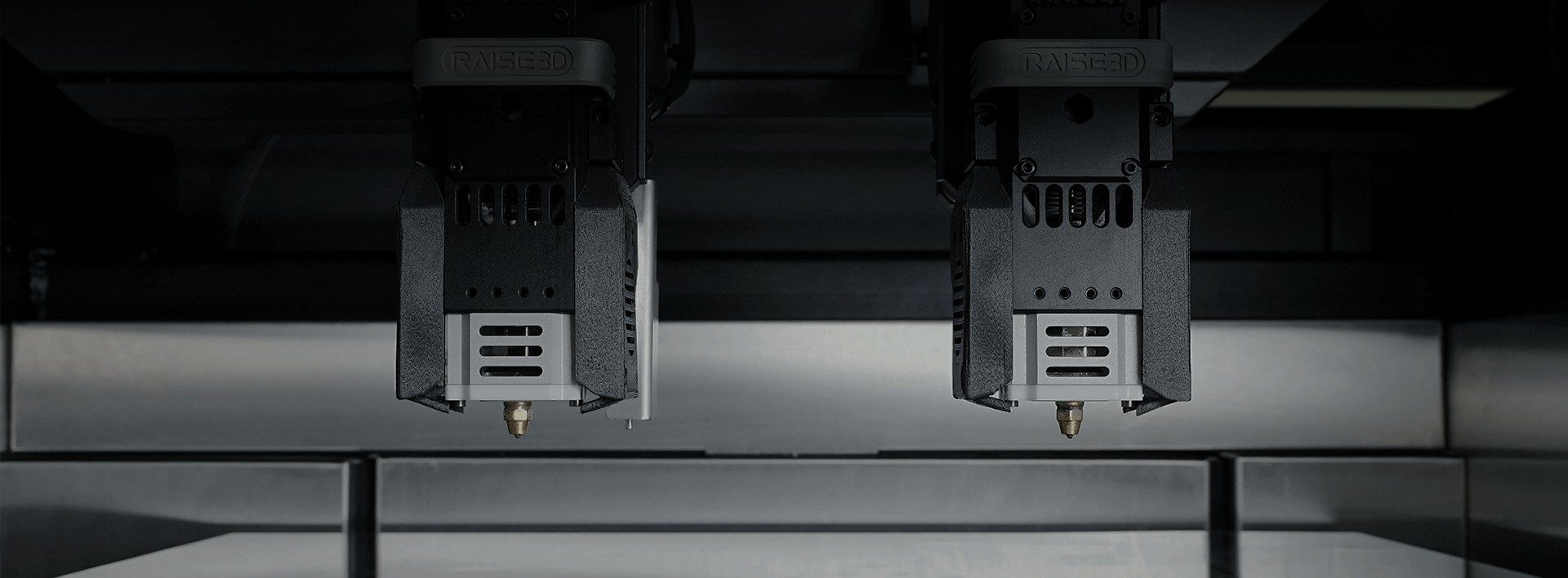

High Performance IDEX

The RMF500’s independent extrusion systems (IDEX) are manufactured using high-temperature alloys and industrial ceramic composite materials. Each extruder has a heating capacity of up to 300 W, ensuring a stable and high extrusion rate of up to 500 g/hr.

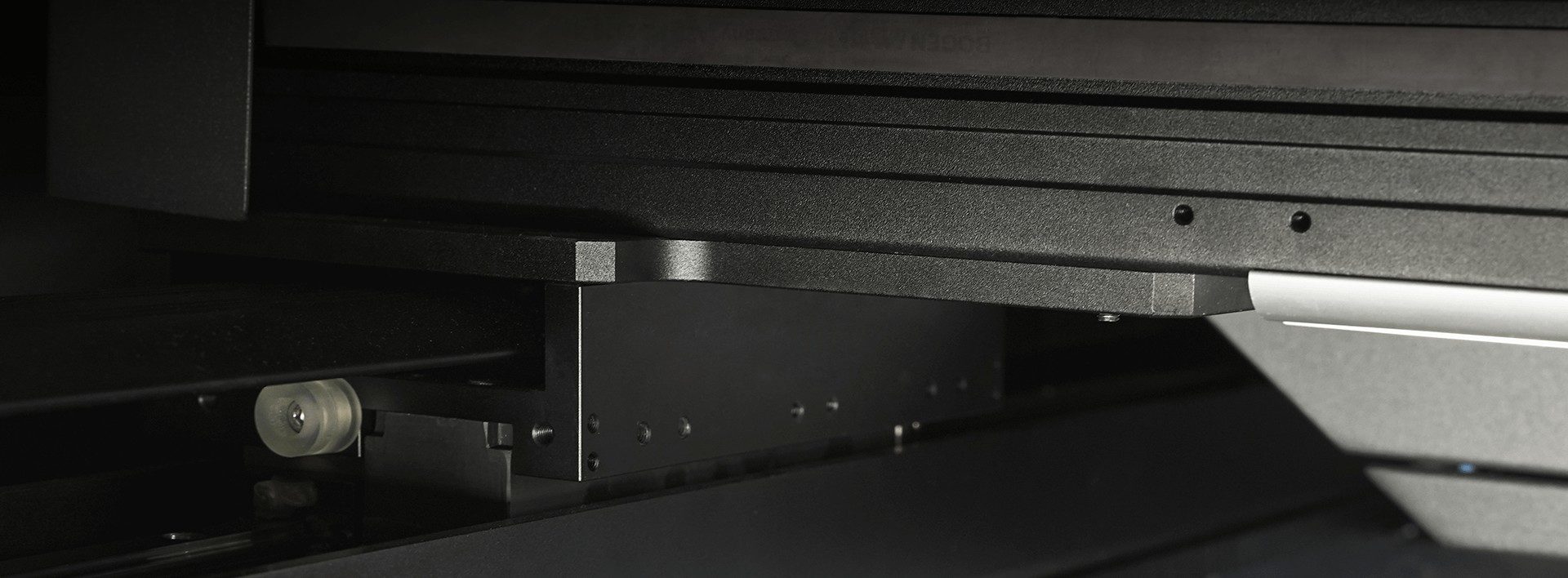

Heavy Duty Structure

An all-steel structure frame grants the RMF500 high capacity and performance. The RMF500 has high-grade hardness steel for low clearance linear guides, a Z-axis with a maximum load limit of over 100kg, and a 50% lower error deflection.

3D Printer RMF 500 από τη Raise3D - 3DHUB.gr

Distinct Cost-Efficiency among Peers

The RMF500 is designed to achieve the maximum cost-efficiency in terms of material performance vs the process cost. The effective application of material science resulted in the optimization of the system’s design with a much lower energy consumption.

3D Printer RMF 500 από τη Raise3D - 3DHUB.gr

See Details

Science of Fiber-Reinforced Thermoplastic

The Raise3D material science team can produce composite filaments with significantly improved thermal and mechanical properties, by reinforcing thermoplastic with fibers. Fiber-reinforced filaments have high printability and require an environment that does not have to be as hot as with other printing materials.

3D Printer RMF 500 από τη Raise3D - 3DHUB.gr

Non-Heated Chamber

Without a heated chamber, peak power consumption is less than 3kW. The average power consumption per unit printing area is 60% lower than competitors.

3D Printer RMF 500 από τη Raise3D - 3DHUB.gr

Filament Cost

Raise3D fiber-reinforced filaments are competitively priced, making additive manufacturing with fiber-reinforced thermoplastics more accessible.

3D Printer RMF 500 από τη Raise3D - 3DHUB.gr
