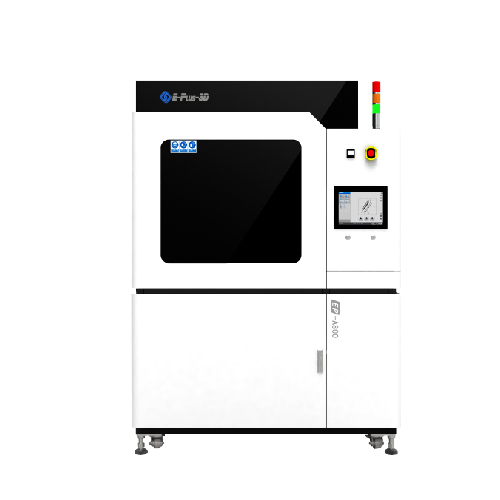

EP-A800 Resin 3D Printer

Availability: In Stock

Επαγγελματικός βιομηχανικός εκτυπωτής SLA Resin από τον κορυφαίο στο είδος αυτό κατασκευαστή EPLUS3D, τεράστιο build volume και σημαντικές κατασκευαστικές καινοτομίες που χαρίζουν ποιότητα εκτύπωσης και αξιοπιστία!

Based on years of experience at 3d digital technology, laser scanning strategy optimization technology
and the successful experience of EP-A650, EP-A450, EP-A350 resin 3d printers,
Eplus3D launched the new large size parts & mass production resin 3d printer EP-A800.

The newly developed 3d printer is of high efficiency, high precision, large size and free maintenance,
especially suits for producing prototypes, rapid molds, precision casting prototypes,
sole molds and dental orthodontic models.

Patented Technology, Stable and Reliable, High Precision

Patented VarioBeam Technology,which has a high positioning accuracy, ensures processing efficiency and surface quality as well.
Liquid-level Control Technology, the adjustment accuracy is within ±0.01mm; automatic detection during printing, dynamic fine adjustment.
Automatic detection during printing, dynamic fine adjustment.
The design of machine hardware framework is optimized and more stable.
00-level marble platform to improve the motion accuracy and long-term stability.

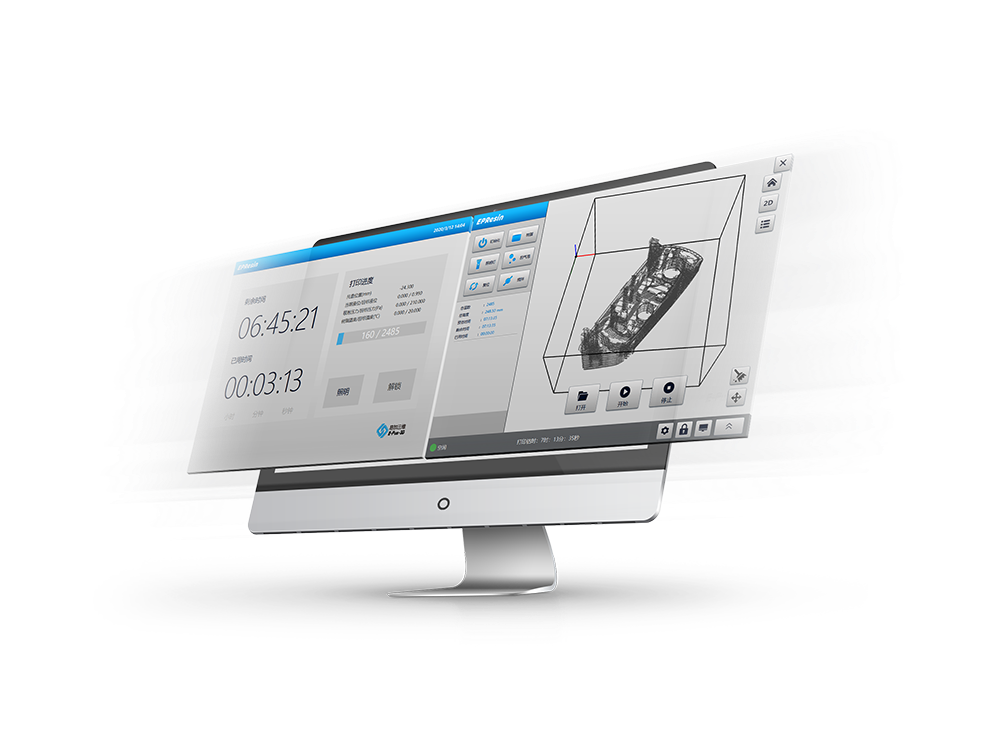

User-friendly Software, Easy to operate

Optimized software automatically identifies the model features and surface quality.
Provide variety of process parameter packages, such as dimensionand power coefficient, to customers for convenient adjustments.
The process parameters can be dynamically specified for a better printing.
One-click to calibrate the Laser Power. The power will be detected and adjusted automatically before printing.
Simple software, One-click to print, The printing parameters is clearly displayed in real time.

Machine Model	EP-A800

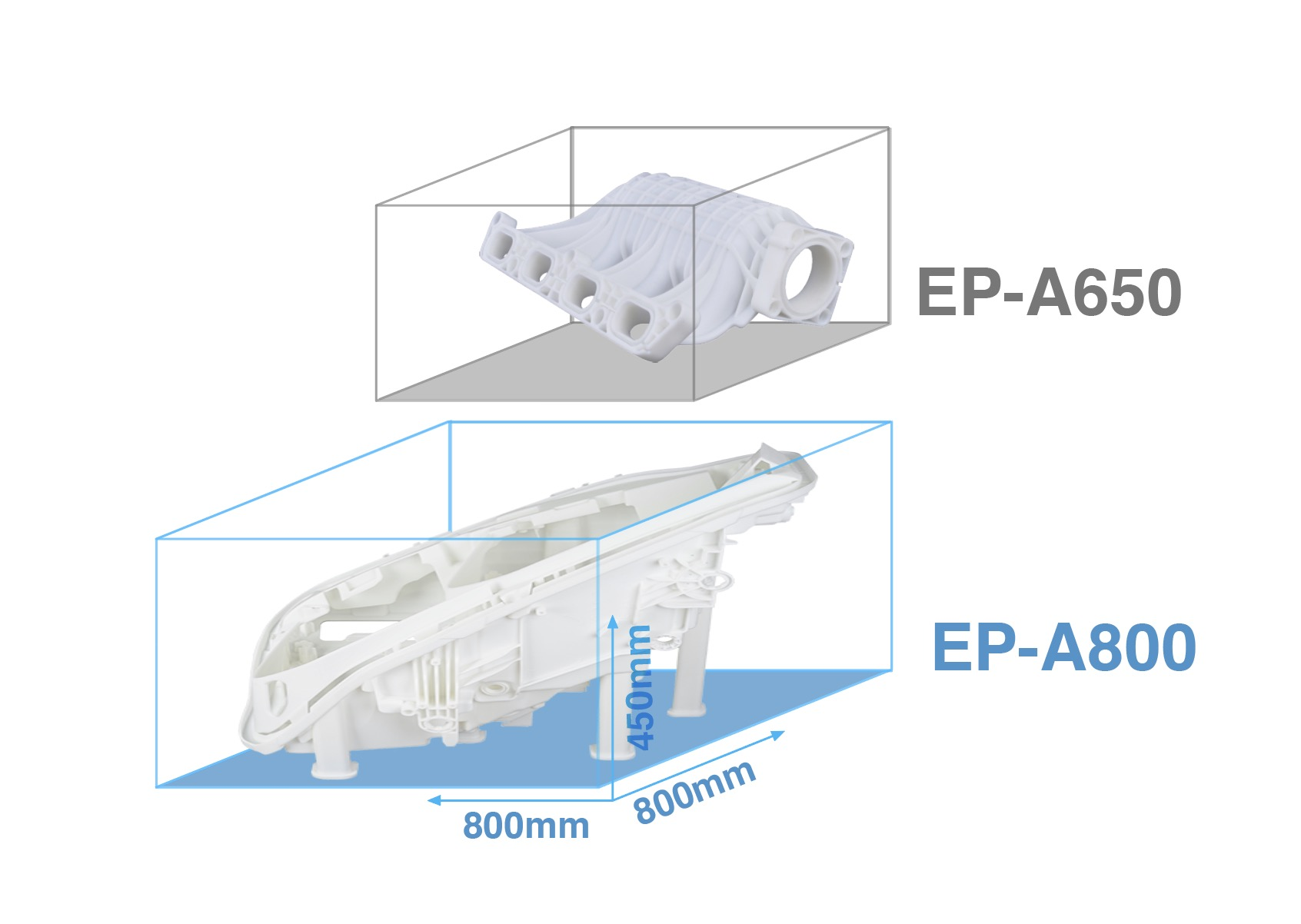

Build Volume (XYZ)	800mm800mm450mm （The height can be customized up to 550mm）
Build Accuracy*	± 0.15 mm (L＜100 mm), ± 0.15% xL (L ≥100 mm)
Layer Thickness	0.05mm~0.25mm
Scanning Speed	Typical speed: 6－12m/s
Max. weight of one-time produced part	120Kg
Laser	DPSSL (Diode-pumped solid-state laser), 3W
Optical Scanning System	Galvanometer Scanners system
Optical focusing system	F-theta lens
Spot Size	Invariant spot：0.08-0.2mm, Variant spot：0.08~0.8mm（VarioBeam Module required）
Motion platform	Marble platform（00 level）
Control software	Self-developed software EPResin
Data format	.stl /.slc/.cli/.epi
Equipment IPC	I3，2.1GHz Frequency, 4GB Memory；Windows® 7 or Windows® 10
Dimensions (LWH)	With package：1850mm1700mm2500mm, Without package：1650mm1500mm2250mm
Machine Weight	1500KG（without resin）
Power Supply	200-240 VAC, 50/60 Hz, single phase
Operating Temperature	20-26℃
Operating Humidity	Less than 40%
Installation ground	Solid, level, no vibration

Επιπλέον πληροφορίες

Machine Model	EP-A800
Build Volume (XYZ)	800mm800mm450mm （The height can be customized up to 550mm）
Build Accuracy*	± 0.15 mm (L＜100 mm), ± 0.15% xL (L ≥100 mm)
Layer Thickness	0.05mm~0.25mm
Scanning Speed	Typical speed: 6－12m/s
Max. weight of one-time produced part	120Kg
Laser	DPSSL (Diode-pumped solid-state laser), 3W
Optical Scanning System	Galvanometer Scanners system
Optical focusing system	F-theta lens
Spot Size	Invariant spot：0.08-0.2mm, Variant spot：0.08~0.8mm（VarioBeam Module required）
Motion platform	Marble platform（00 level）
Control software	Self-developed software EPResin
Data format	.stl /.slc/.cli/.epi
Equipment IPC	I3，2.1GHz Frequency, 4GB Memory；Windows® 7 or Windows® 10
Dimensions (LWH)	With package：1850mm1700mm2500mm, Without package：1650mm1500mm2250mm
Machine Weight	1500KG（without resin）
Power Supply	200-240 VAC, 50/60 Hz, single phase
Operating Temperature	20-26℃
Operating Humidity	Less than 40%
Installation ground	Solid, level, no vibration
