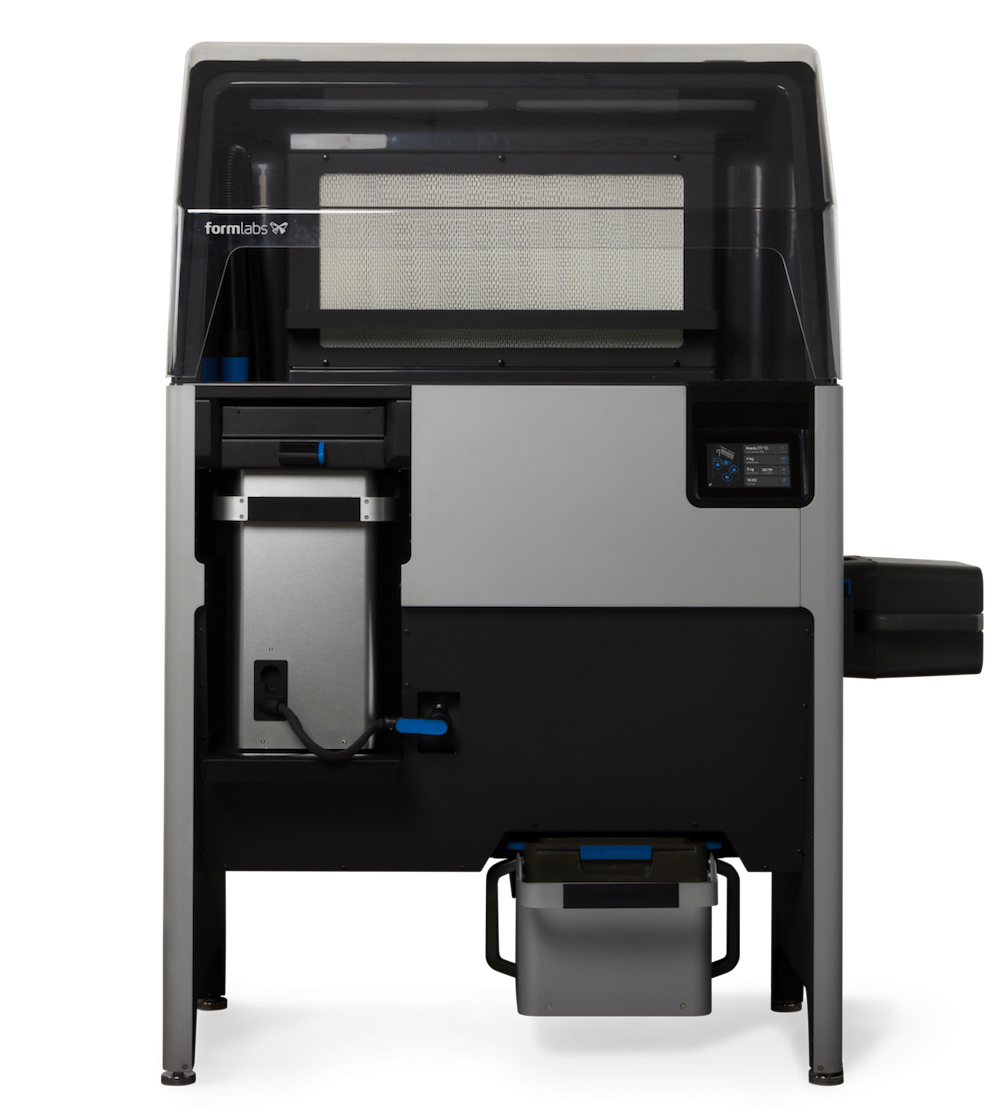

Formlabs Fuse Sift
To Fuse Sift είναι η συνοδευτική επαγγελματική depowder μονάδα του κορυφαίου Formlabs Fuse1 SLS 3D Printer που συμβάλλει στο ομολογουμένως πολύ ασφαλές, εύκολο και καθαρό workflow του εκτυπωτή. Σε αυτήν μεταφέρεται το build unit για να ολοκληρωθεί η ψύξη των εκτυπώσεων ώστε ο Fuse να είναι ελεύθερος για επόμενη εκτύπωση. Εκεί γίνεται επίσης το ξεπουδράρισμα των εκτυπώσεων, η ανάκτηση της χρησιμοποιημένης πούδρας, η μίξη της με φρέσκια, αλλά και η προετοιμασία του κάδου για την επόμενη χρήση!
Compact, enclosed system
A negative air pressure system keeps powder inside while enabling open access and easy cleanup.
Dimensions
1.0 × 0.6 × 1.5 m | 39.9 × 24.0 × 60.8 in
Low waste
A 30% material refresh rate means you can print with up to 70% recycled powder, indefinitely. Fuse Sift’s sieve filters out particles to be remixed with new powder and reused in future prints.
30%
MATERIAL REFRESH RATE
NYLON 12
Automatic powder mixing
Fuse Sift will dispense and mix used and new powder automatically so you can reduce waste and control your powder supply.
Nonstop printing

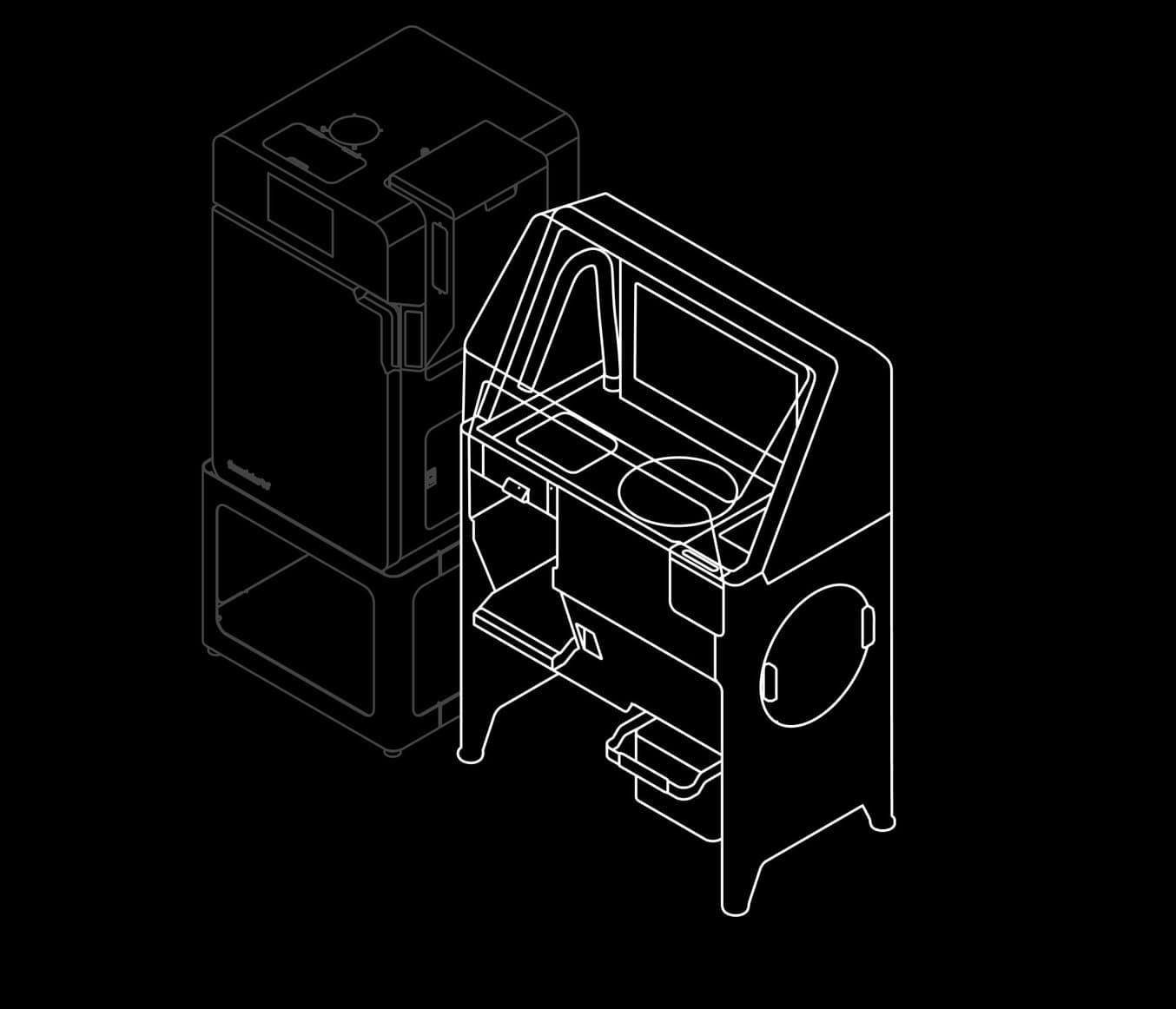

Reduce downtime by transferring modular build chambers and powder cartridges between the Fuse 1 and Fuse Sift for a nonstop, cyclical workflow.
A complete toolkit
The Fuse Sift includes a set of finishing tools to help you clean excess powder from parts with ease.
Επιπλέον πληροφορίες
| Printer Compatibility | Fuse 1 |
|---|---|
| Fuse Sift Dimensions (W × D × H) | 101.5 × 61.0 × 154.5 cm, 39.9 × 24.0 × 60.8 in, Height when open: 190 cm (75 in) |
| Build Chamber Dimensions (W × D × H) | 11.0 × 13.5 × 19.3 in, 27.9 × 34.2 × 48.9 cm |
| Minimum Access Dimensions (W × D × H) | 221.1 × 122.0 × 218.0 cm, 87.1 × 48.0 × 85.8 in |
| Fuse Sift Weight | 205 lb (without build chamber or powder), 93 kg (without build chamber or powder) |
| Build Chamber Weight | 11 kg (17.6 kg, full with 20% packed powder), 24.3 lb (38.8 lb, full with 20% packed powder) |
| Build Volume (W × D × H) | 16.5 x 16.5 x 30.0 cm (with radiused corners), 6.5 × 6.5 × 11.8 in (with radiused corners) |
| Fresh Powder Hopper Capacity | 18.7 lb Nylon 12, 8.5 kg Nylon 12 |
| Used Powder Hopper Capacity | 20 lb Nylon 12, 9.1 kg Nylon 12 |
| Operating Environment | 18 – 26 ºC, 68 – 80 ºF, ≤ 30% ambient humidity |
| Air Handling | Independent venting system, Negatively pressurized hood with replaceable HEPA filter |
| Air Filtration | Replaceable HEPA medium |
| Power Requirements (with a vacuum that draws less than 6 A (230 VAC) / 12 A (120 VAC)) | EU: 230 VAC, 7.5 A (dedicated circuit), US: 120 VAC, 15 A (dedicated circuit) |
| Power Requirements (with a vacuum that draws more than 6 A (230 VAC) / 12 A (120 VAC)) | EU: 230 VAC, 10 A (dedicated circuit), US: 120 VAC, 20 A (dedicated circuit) |
| Vacuum Requirements | Auxiliary vacuum with static dissipative components that is grounded and bonded (e.g., a NFPA 652 compliant vacuum) |
| Connectivity | Ethernet (1000 Mbit), USB 2.0, Wi-Fi (2.4 GHz) |
| Ethernet Connectivity | Connect with a shielded Ethernet cable (not included): minimum Cat5, or Cat5e or Cat6 for 1000BASE-T., RJ-45 Ethernet (10BASE-T/100BASE-TX/1000BASE-T) LAN port |
| Wi-Fi Connectivity | Frequency: 2.4 GHz, Protocol: IEEE 802.11 b/g/n, Supported security: WPA/WPA2 |
| USB Connectivity | USB (rev 2.0) B port with a USB A-B cable |
| Sound Emission | Does not exceed 76.5 dB(A) |
| Fuse Sift Control | Interactive touchscreen, physical buttons |
| Included Accessories | Dental Picks, Dust Mask, Gloves, Large Brush, Lifting Straps, Pipe Cleaners, Safety Glasses, Small Brush x 2, Vacuum Brush Tool, Vacuum Crevice Tool |
