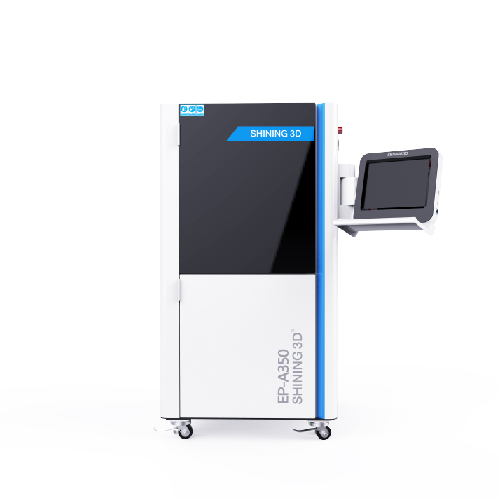

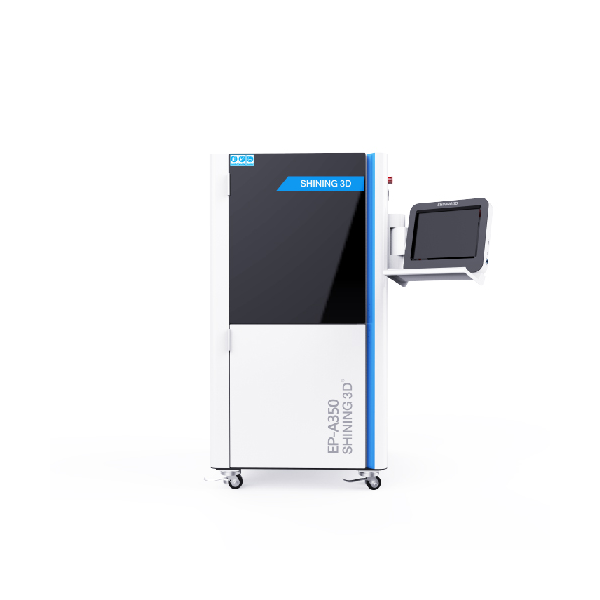

EP-A350 Resin 3D Printer

Availability: In Stock

Επαγγελματικός βιομηχανικός εκτυπωτής SLA Resin από τον κορυφαίο στο είδος αυτό κατασκευαστή EPLUS3D, τεράστιο build volume και σημαντικές κατασκευαστικές καινοτομίες που χαρίζουν ποιότητα εκτύπωσης και αξιοπιστία!

Recommended Materials

Somos ® GP Plus 14122

White opaque material, similar as ABS and PBT, an ideal choice for automobile, aerospace and consumption products, also can be used in biomedicine, dental and skin applications.

Somos ® WaterShed XC 11122

Transparent material without color, similar as ABS and PBT, with exceptional clarity and high water-resistance, an ideal choice for automobile, medical and consumption products, including lens, packing, fluid flow analysis, concept models, etc.

Machine Model	EP-A350
Build Volume (XYZ)	350 x 350 x 300 mm
Layer Thickness	0.05 mm~0.25 mm to choose
Spot Size	0.08 mm~0.2 mm (standard) 0.08 mm~0.8 mm (optional Variobeam)
Build Accuracy*	± 0.08 mm (L＜100 mm), ± 0.08% xL (L ≥100 mm)
Laser	Diode-pumped solid-state laser Nd:YVO4, wavelength:355 nm
Scanning Speed	15m/s (Max), 6-10m/s (Typical)
Dimensions (LWH)	11009501640 mm
Net Weight	440 kg
Resin	70 kg
Power Supply	200-240 VAC, 50/60 Hz, single phase
Software	EP-Resin
Input Data	.stl /.slc/.cli/.epi
Working Platform	Marble platform (A0 level)
Material Level Position Accuracy	± 0.02
Focus Lens	F-theta lens system
Optical Scanning System	High-speed scanning galvanometer
Operating Environment	Temperature 20-26 ; relative humidity <40% (non-condensing)
