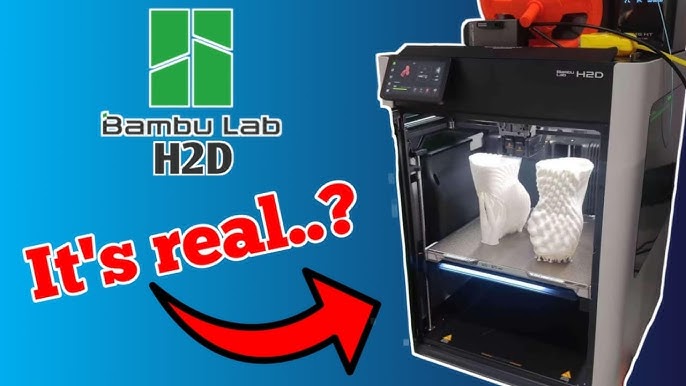

Το νέο flagship 3D printer model της Bambulab θα λέγεται H2D και θα γίνει launch στις 25/3! Ακολουθούν οι προδιαγραφές που διέρρευσαν στα forum της Bambu και μένει να δούμε το πόσο κοντά είναι στις πραγματικές αλλά και το να σας πούμε εντυπώσεις από το test unit μας!
| Item | Specification | |
|---|---|---|
| Printing Technology | Fused Deposition Modeling | |
| Body | Build Volume (W*D*H) |
Single Nozzle Printing: 325*320*325 mm³
Dual Nozzle Printing: 300*320*325 mm³
Total Volume for Two Nozzles: 350*320*325 mm³
|
| Chassis | Aluminum and Steel | |
| Outer Frame | Plastic and Glass | |
| Physical Dimensions | Physical Dimensions | 492*514*626 mm³ |
| Net Weight | 31 kg | |
| Toolhead | Hotend | All Metal |
| Extruder Gear | Hardened Steel | |
| Nozzle | Hardened Steel | |
| Max Nozzle Temperature | 350 °C | |
| Included Nozzle Diameter | 0.4 mm | |
| Supported Nozzle Diameter | 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm | |
| Filament Cutter | Built-in | |
| Filament Diameter | 1.75 mm | |
| Extruder Motor | Bambu Lab High-precision Permanent Magnet Synchronous Motor | |
| Heatbed | Build Plate Material | Flexible Steel Plate |
| Included Build Plate Type | Textured PEI Plate | |
| Supported Build Plate Type | Textured PEI plate, Smooth PEI Plate | |
| Max Heatbed Temperature | 120 ℃ | |
| Speed | Max Speed of Toolhead | 1000 mm/s |
| Max Acceleration of Toolhead | 20,000 mm/s² | |
|
Max Flow for Hotend
(Standard Flow Hotend)
|
40 mm³/s(Test parameters: 250 mm round model
with a single outer wall;
Bambu Lab ABS; 280 °C printing temperature)
|
|
|
Chamber Temperatur
Control
|
Active Chamber Heating | Supported |
| Max Temperature | 65 °C | |
| Air Purificatio | Pre-filter Grade | G3 |
| HEPA Filter Grade | H12 | |
| Activated Carbon Filter Type | Granulated Coconut Shell | |
| VOC Filtration | Superior | |
| Particulate Matter Filtration | Supported | |
| Cooling | Part Cooling Fan | Closed Loop Control |
| Cooling Fan for Hotend | Closed Loop Control | |
| Main Control Board Fan | Closed Loop Control | |
| Chamber Exhaust Fan | Closed Loop Control | |
| Chamber Heat Circulation Fan | Closed Loop Control | |
| Auxiliary Part Cooling Fan | Closed Loop Control | |
| Supported Filament Type | PLA, PETG, TPU, PVA, BVOH | Optimal |
| ABS, ASA, PC, PA, PET | Superior | |
|
Carbon/Glass Fiber Reinforced PLA,
PETG, PA, PET, PC, ABS,ASA
|
Superior | |
| PPA-CF/GF, PPS, PPS-CF/GF | Ideal | |
| Sensor | Live View Camera | Built-in; 1920*1080 |
| Nozzle Camera | Built-in; 1920*1080 | |
| BirdsEye Camera | Built-in; 3264*2448 | |
| Toolhead Camera | Built-in; 1920*1080 | |
| Door Sensor | Supported | |
| Filament Run Out Sensor | Supported | |
| Filament Tangle Sensor | Supported | |
| Filament Odometry | Supported with AMS | |
| Power Loss Recovery | Supported | |
| Electrical Requirements | Voltage | 100-120 VAC / 200-240 VAC, 50/60 Hz |
| Max Power* | 2200 W@220 V / 1320 W@110 V | |
| Average Power | 1050 W@220 V / 1050 W@110 V | |
| Electronics | Touchscreen | 5-inch 720*1280 Touchscreen |
| Storage | Built-in 8 GB EMMC and USB Port | |
| Control Interface | Touchscreen, mobile App, PC App | |
| Motion Controller | Dual-core Cortex-M4 and Single-core Cortex-M7 | |
| Application Processor | Quad-core 1.5 GHz ARM A7 | |
| Neural Processing Unit | 2 TOPS | |
| Software | Slicer |
Bambu Studio
Supports third-party slicers which export standard G-code,
such as Super Slicer, PrusaSlicer and Cura,
but certain advanced features may not be supported.
|
| Supported Operating System | MacOS, Windows | |
| Network Control | Ethernet | Not Available |
| Wireless Network | Wi-Fi | |
| Network Kill Switch | Not Available | |
| Removable Network Module | Not Available | |
| 802.1X Network Access Control | Not Available | |
| Wi-Fi | Operating Frequency |
2412-2472 MHz, 5150-5850 MHz (FCC/CE)
2400-2483.5 MHz,5150-5850 MHz (SRRC)
|
| Wi-Fi Transmitter Power (EIRP) |
2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC)
5 GHz Band3: <30 dBm (CE); <24 dBm (FCC)
5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
|
|
| Wi-Fi Protocol | IEEE 802.11 a/b/g/n | |
| 10W Laser Module | Laser Type | Semiconductor Laser |
| Laser Wavelength |
Engraving Laser: 455 nm ± 5 nm Blue Light
Height Measuring Laser: 850 nm ± 5 nm Infrared Light
|
|
| Laser Power | 10 W ± 1 W | |
| Laser Spot Dimension | 0.03 mm * 0.14 mm | |
| Working Temperature | 0 °C–35 °C | |
| Max Engraving Speed | 400 mm/s | |
| Max Cutting Thickness | 5 mm (Basswood Plywood) | |
| Laser Safety Class for Laser Module | Class 4 | |
| Overall Laser Safety Class* | Class 1 | |
| Engraving Area | 310 mm * 270 mm | |
| Processing Height Range | 0 mm-280 mm | |
| XY Positioning Method | Visual Positioning | |
| XY Positioning Accuracy | < 0.3 mm | |
| Z Height Measuring Method | Micro Lidar | |
| Z Height Measuring Accuracy | ± 0.1 mm | |
| Flame Detection | Supported | |
| Temperature Detection | Supported | |
| Door Sensor | Supported | |
| Laser Module Installation Detection | Supported | |
| Engraving Timelapse | Supported | |
| Safety Key | Included | |
| Air Pump | Built-in; 30 kPa, 30 L/min | |
| Ventilation Pipe Adapter Outer Diameter | 100 mm | |
| Supported Material Type | Wood, rubber, metal sheet, lether, dark acrylic, stone, and more | |
| 40W Laser Module | Laser Type | Semiconductor Laser |
| Laser Wavelength |
Engraving Laser: 455 nm ± 5 nm Blue Light
Height Measuring Laser: 850 nm ± 5 nm Infrared Light
|
|
| Laser Power | 40 W ± 2 W | |
| Laser Spot Dimension | 0.14 mm * 0.2 mm | |
| Working Temperature | 0 ℃–35 ℃ | |
| Max Engraving Speed | 1000 mm/s | |
| Max Cutting Thickness | 15 mm (Basswood Plywood) | |
| Laser Safety Class for Laser Module | Class 4 | |
| Overall Laser Safety Class* | Class 1 | |
| Engraving Area | 310 mm * 250 mm | |
| Processing Height Range | 0 mm–265 mm | |
| XY Positioning Method | Visual Positioning | |
| XY Positioning Accuracy | < 0.3 mm | |
| Z Height Measuring Method | Micro Lidar | |
| Z Height Measuring Accuracy | ± 0.1 mm | |
| Flame Detection | Supported | |
| Temperature Detection | Supported | |
| Door Sensor | Supported | |
| Laser Module Installation Detection | Supported | |
| Engraving Timelapse | Supported | |
| Safety Key | Included | |
| Air Pump | Built-in; 30 kPa, 30 L/min | |
| Ventilation Pipe Adapter Outer Diameter | 100 mm | |
| Supported Material Type | Wood, rubber, metal sheet, lether, dark acrylic, stone, and more | |
| Cutting Module | Cutting Area | 300*285 mm² |
| Drawing Area | 300*255 mm² | |
| Supported Pen Diameter | 10.5 mm-12.5 mm | |
| Cutting Mat Type | LightGrip and StrongGrip Cutting Mats | |
| Blade Type | 45°*0.35 mm | |
| Blade Pressure Range | 50 gf-600 gf | |
| Max Cutting Thickness | 0.5 mm | |
| Blade and Pen Recognition | Supported | |
| Cutting Mat Type Detection | Supported | |
| Supported Image Type | Bitmap and Vector Images | |
| Supported Material Type | Paper, vinyl, leather, and more | |
